Rigging Type	90 and 70 MFX w/o Pivot/Slide Tube	60 HD, 60 MFX, 70 NHD PW93, PW93E (9-7/8" Tube)	60 HD, 60 MFX, 70 NHD PW93, PW93E (11-7/8" Tube)
12-13" W - Right (4-1/4" Footplate)	1060436- NLA	N/A	N/A
12-13" W - Left (4-1/4" Footplate)	1060437	N/A	N/A
14-15" W - Right (5-1/4" Footplate)	1060438	1060444 MSRP: $142.00	1062758 MSRP: $142.00
14-15" W - Left (5-1/4" Footplate)	1060439	1060445 MSRP: $142.00	1062759 MSRP: $142.00
16" and Wider - Right (6-1/4" Footplate)	1062570 MSRP: $142.00	1062756 MSRP: $142.00	1062760 MSRP: $142.00
16" and Wider - Left (6-1/4" Footplate)	1062571 MSRP: $142.00	1062757 MSRP: $142.00	1062761 MSRP: $142.00

Create/add to Wishlist

Pivot/ Slide Tube w/ Footplate Assemblies

N/A

A

Create/add to Wishlist

2

1113572

Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

$114.00

B ,E

Create/add to Wishlist

2

1113573

Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

$114.00

C ,E

Create/add to Wishlist

2

1113574

Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)

1

$85.00

D ,E

Create/add to Wishlist

3

1058517

Clamp, Footplate

1

$16.00

Create/add to Wishlist

4

1057855

Tube, Pivot and Slide, Straight, Steel, Black (9-7/8" L)

1

$34.00

Create/add to Wishlist

4

1057856

Tube, Pivot/Slide, Straight, Steel, Black (11-7/8" L)

1

$36.00

Create/add to Wishlist

5

1048816

Screw, Nylon Adjustment (1/2-13 x 7/8")

1

$12.00

Create/add to Wishlist

6

1052102

Hinge, Footplate - Right

1

$133.00

Create/add to Wishlist

6

1052103

Hinge, Footplate - Left

1

$77.00

Create/add to Wishlist

7

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

2

$9.00

Create/add to Wishlist

8

7930321

NLA Package, Screw, Socket Button Head (1/4-20 x 1-7/8")

1

N/A

Create/add to Wishlist

9

1026900

Washer (1/4 x 23/32 x 1/16")

1

$9.00

Create/add to Wishlist

10

7930313

Package, Washer, Nylon (5/16 x 7/8 x 1/8")

1

$62.00

Create/add to Wishlist

11

1036435

Washer, Nylon (1/4 x 7/8 x 1/32")

1

$9.00

Create/add to Wishlist

12

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

$9.00

Create/add to Wishlist

13

1026099

Spacer, Coved (1/4 x 11/16 x 1/2")

1

$8.00

Create/add to Wishlist

14

1026907

Washer (1/4 x 1/2 x 1/16")

1

$8.00

Create/add to Wishlist

15

7930333

Locknut (1/4-20)

1

$62.00

Create/add to Wishlist

16

1082686

Nut, Barrel, Hex Head (1/4-20 x 11/16")

1

2

$11.00

Note Code	Definition
A	Includes Items 2 thru 16.
B	For 12-13" wide chairs.
C	For 14-15" wide chairs.
D	For 16" and wider chairs.
E	This footplate was revised 9/2/2008 with rounder corners and accessory holes changed from 8 to 4. Recommended to replace footplate in pairs to match sides.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

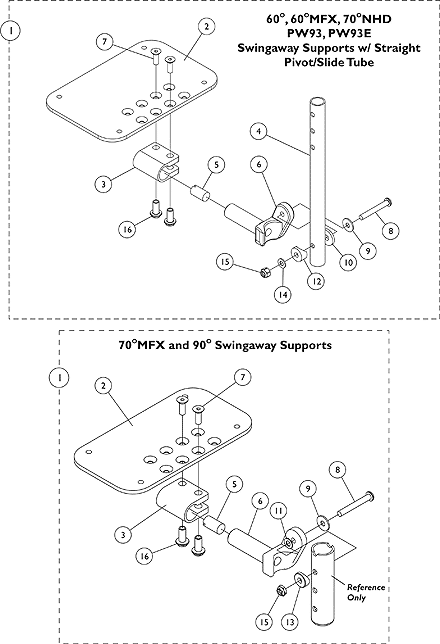

Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates
