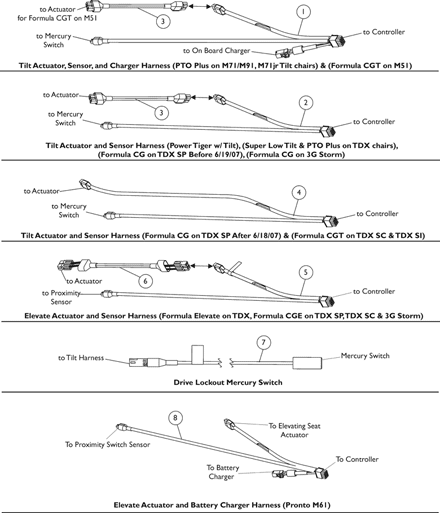

Harnesses
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Chairs with (PTO Plus on Pronto M71/M91), (M71jr tilt) and (Formula CGT on M51) models. |
| B | Chairs with (Manual Tilt on Power Tiger), (Super Low Tilt & PTO Plus on TDX), (Formula CG on TDX SP before 6/19/07) and (Formula CG w/ a Conventional Tilt Actuator Motor on 3G Storm and 4-Pole Motors). |
| C | Used for TDX SP models made before 6/19/07. If the customer wants to eliminate the need for the adapter cable, order item #4 "Harness, Tilt Actuator and Sensor" dated after 6/18/07 |
| D | After 6/18/07 a new Tilt Actuator and Sensor Harness was created to eliminate the need for item #3 "Cable, Actuator Jumper Adapter". The Harness is backward compatible for chairs made before 6/19/07 if the customer wants to eliminate the adapter cable. |
| D1 | Used for a Conventional Tilt Actuator Motor only on TDX SP-CG (Tilt Only) models equipped with 4-Pole Motors. Used for Formula CGT on TDX SC and TDX SI models also. |
| E | Chairs with (Formula Elevate on TDX), (Formula CGE on TDX SP, TDX SC and 3G Storm). |
| F | The Actuator Jumper Adapter R2T Cable is only used in connection with item #5 Elevate Actuator and Sensor Harness for Formula Elevate on TDX |
| G | Part # 1101400 traditionally used for ELRPW Legrest is also used for the Formula CG Tilt Actuator Motor on Pronto M51 bases. This Harness is also used for 3G Storm Series with 4-Pole Motors and a Conventional Tilt Actuator Motor. |
| H | Mercury Switch is used for Conventional Actuator Motors only. |
| I | Elevate Actuator and Battery Charger Harness (Pronto M61). |
