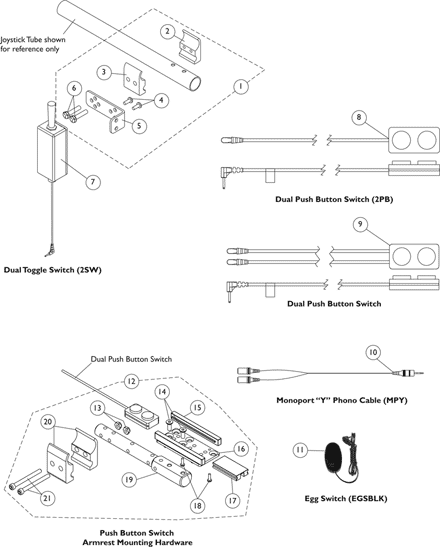

Dual Push Button Switches - Dual Toggle Switch (2SW) & Monoport "Y" Phono Cable (MPY)

Print this page

Dual Push Button Switch, Dual Toggle Switch (2SW) & Monoport

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1091496

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
5	NLA - Bracket, Toggle Switch Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
5	NLA - Bracket, Toggle Switch Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	NLA - Bracket, Toggle Switch Mounting, Black	1	1
7	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
5	NLA - Bracket, Toggle Switch Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Half Clamp, Threaded Holes	1	1
5	Half Clamp, Non-Threaded Holes	1	1
6	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
7	NLA - Bracket, Toggle Switch Mounting, Black	1	1
8	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2

Kit, Joystick Tube Toggle Switch Mounting Hardware

$95.00

Create/add to Wishlist

1142221

Switch, Dual Function Toggle (2SW)

$214.00

Create/add to Wishlist

1157818

Kit, Switch, Dual Push Button (2PB)

$290.00

D ,E

Create/add to Wishlist

1140027

Cable, Monoport "Y" Phono (MPY)

$31.00

Create/add to Wishlist

1123276

Kit, Switch, Black Egg Reset w/ Hook/Loop Adhesive Back Fastener & Attaching Screws (EGSBLK)

$146.00

Create/add to Wishlist

1157817

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Plate, Push Button Mounting	1	1
7	Blank, 2-Position Push Button	1	1
8	NLA - Screw, Phillips Pan Head Tap (4-40 x 3/8")	1	4
9	Bar, Push Button Support	1	1
10	Half Clamp, Non-Threaded Holes	1	2
11	Screw, Socket Head (#10-32 x 2")	1	2
3	Locknut (#10-32)	1	2
4	Screw, Socket Flat Head (10-32 x 1/2")	1	2
5	Rail, Push Button Slide	1	2
13	Locknut (#10-32)	1	2
14	Screw, Socket Flat Head (10-32 x 1/2")	1	2
15	Rail, Push Button Slide	1	2
16	Plate, Push Button Mounting	1	1
17	Blank, 2-Position Push Button	1	1
18	NLA - Screw, Phillips Pan Head Tap (4-40 x 3/8")	1	4
19	Bar, Push Button Support	1	1
20	Half Clamp, Non-Threaded Holes	1	2
21	Screw, Socket Head (#10-32 x 2")	1	2
3	Locknut (#10-32)	1	2
4	Screw, Socket Flat Head (10-32 x 1/2")	1	2
5	Rail, Push Button Slide	1	2
6	Plate, Push Button Mounting	1	1
7	Blank, 2-Position Push Button	1	1
8	NLA - Screw, Phillips Pan Head Tap (4-40 x 3/8")	1	4
9	Bar, Push Button Support	1	1
10	Half Clamp, Non-Threaded Holes	1	2
11	Screw, Socket Head (#10-32 x 2")	1	2

Kit, Push Button Switch Armrest Mounting Hardware (PBMT)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6
B	For use in the mode switch port of the MK6i Display, MPJ+, PSFM6 and PSRM6 Joysticks to provide TWO programmable switch functions, (Mono Port 1 and Mono Port 2 of the calibrations menu). Not compatible with SPJ+ Joysticks.
C	Monoport "Y" Phono Cable allows adding a second switch (ex. Egg Reset Switch) to the mode switch port of the MK6i Display, MPJ+, PSFM6 and PSRM6 Joysticks. The "Y" Phono Cable can not be used with item #7 or #8 switches
D	Includes the Dual Push Button Switch with Hook & Loop Adhesive Back Fastener.
E	For use in the switch ports of the MK6 SPJ+ w/ PSS (SPJAP) or MK6i SPJ+ w/ ACC (SPJAPM) Joystick to provide TWO switch functions.
F	Kit is sold complete and includes items 13-21. Kit is standard on TDX SPREE with SPJ+ Joystick

Catalog Literature
