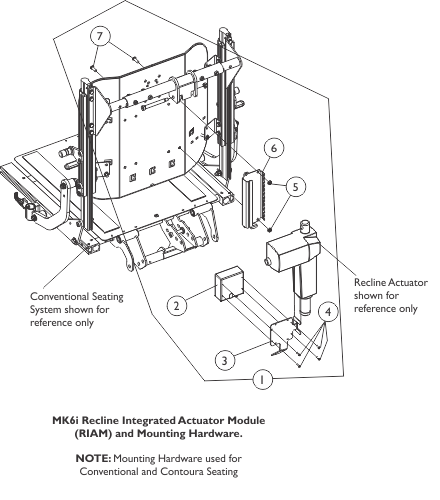

Recline Integrated Actuator Module (RIAM) & Hdwr. - Formula Recline & Tilt/Recline - TDX 3, 3 SE, 4 & 5

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1145415

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Module, Recline Integrated Actuator (RIAM) - MK6i (36" L)	1	1
3	NLA - Bracket, MK6i Recline Integrated Actuator Module, Black (RIAM)	1	1
4	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4
5	Locknut (1/4-20)	1	2
6	Bracket, MK6i Connector, Black	1	1
7	Screw, Socket Button (1/4-20 x 3/4")	1	2
2	Module, Recline Integrated Actuator (RIAM) - MK6i (36" L)	1	1
3	NLA - Bracket, MK6i Recline Integrated Actuator Module, Black (RIAM)	1	1
4	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4
5	Locknut (1/4-20)	1	2
6	Bracket, MK6i Connector, Black	1	1
7	Screw, Socket Button (1/4-20 x 3/4")	1	2

NLA - Kit, MK6i Recline Integrated Actuator Module (RIAM) w/ Mtg. Hardware

N/A

Create/add to Wishlist

1140034

Module, Recline Integrated Actuator (RIAM) - MK6i (36" L)

Create/add to Wishlist

1145403

NLA - Bracket, MK6i Recline Integrated Actuator Module, Black (RIAM)

N/A

Create/add to Wishlist

1021742

Screw, Phillips Pan Head (#4-40 x 1/2")

$9.00

Create/add to Wishlist

1025195

Locknut (1/4-20)

$8.00

Create/add to Wishlist

1160374

Bracket, MK6i Connector, Black

Create/add to Wishlist

1009838

Screw, Socket Button (1/4-20 x 3/4")

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-7. Kit is used for Conventional and Contoura Seating

Catalog Literature

Parts Books for Electronics MK6i™
