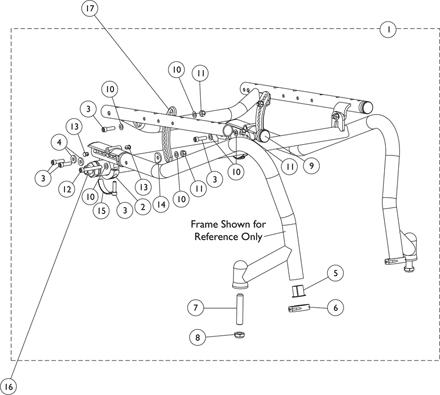

Frame Hardware - Extended

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1159771

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Clamp, Tube Camber	1	2
3	Screw, Socket Head (1/4-28 x 7/8")	1	10
4	Washer, Steel (1/4 x 5/8 x 3/32")	1	4
5	Spacer, Flanged, Black	1	2
6	Clamp, Tube, Footrest	1	2
7	Screw, Socket Head (1/2-20 x 2-1/2")	1	2
8	Locknut (1/2-20)	1	2
9	Plug Button, Black (1")	1	2
10	Washer (1/4 x 1/2 x 1/40)	1	12
11	Locknut (1/4-28)	1	6
12	Screw (1/4-28 x 1-7/8")	1	2
13	Button, Plug (1/4)	1	4
14	Spacer, Coved (1/4 x 13/16 x 9/16)	1	2
15	Bumper, Clamp Camber	1	2

NLA - Hardware, Frame, Extended

Create/add to Wishlist

8881143275

Camber Tube Assembly, Color, 0 Degree

$215.00

Create/add to Wishlist

8881127959

NLA - Camber Tube Assembly, Color, 3 Degree

N/A

Create/add to Wishlist

8881143276

NLA - Camber Tube Assembly, Color, 6 Degree

N/A

Create/add to Wishlist

8881143277

Camber Tube Assembly, Color, 9 Degree

Create/add to Wishlist

See Chart

Added to Cart

Rear Seat to Floor Height	Black	Silver	Blue	Red
14 - 14-1/2 "	1157267- NLA	1157269- NLA	1157266- NLA	1157268- NLA
15 - 16"	1157271 MSRP: $13.00	1157273- NLA	1157270- NLA	1157272- NLA
16.5 - 17.5"	1157275- NLA	1157277- NLA	1157274- NLA	1157276
18 - 20"	1157279- NLA	1157281- NLA	1157278- NLA	1157280- NLA

Create/add to Wishlist

#17 Crescent Links

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-15.
B	Specify frame color when ordering, see category titled, "Frame Finishes." Quote number 090608125056 must be referenced when a new Camber Tube Assembly is ordered

Catalog Literature

Parts Books for Crossfire™ T6A
