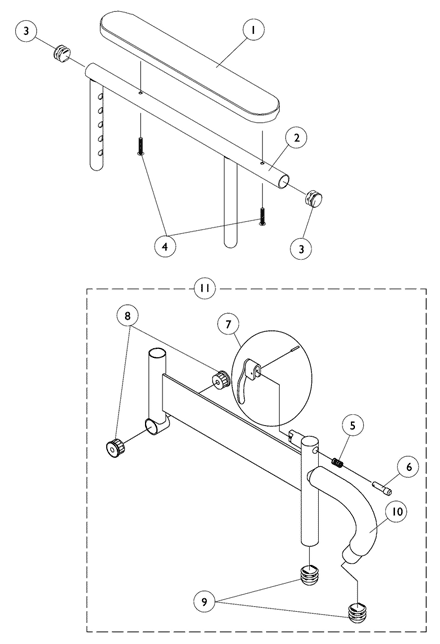

Arms - Adjustable Height - ADJASBA Seats (12" - 16" W x 12" - 18" D)
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 8881015933 | NLA - Pad, Arm, Vinyl, Full Length - Left (14" L x 2" W) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
1 | 8881053577 | Kit, Arm Pad w/ Screws, Full Length (14" L x 2" W) (Pair) | 2 | 1 |
$99.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
1 | 8881011811 | NLA - Pad, Arm, Vinyl, Desk Length (9" L x 2" W) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
1 | 8881053578 | Kit, Arm Pad w/ Screws, Desk Length (9" L x 2" W) (Pair) | 2 | 1 | A |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1071263 | Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left | 1 | 1 |
$63.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1071259 | Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left | 1 | 1 |
$63.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1027095 | Plug Button, Black (7/8") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1055949 | Package, Screw, Phillips Pan Head (#10-32 x 1-3/8") | 2 | 1 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 47471X074 | Spring, Arm Lock | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1028594 | Pin, Arm Lock, Black | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1090768 | Kit, Lock Handle w/Rivets (Pair) | 2 | 1 |
$15.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1065936 | Plug, Pivot | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1067734 | Plug Button, Black (5/8") | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1016298 | Grip, Push Handle | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1068585 | Arm Base Assembly, Adjustable Height, Black - Right | 1 | 1 |
$120.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
11 | 1068586 | Arm Base Assembly, Adjustable Height, Black - Left | 1 | 1 |
$120.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Specify U67 Black upholstery color when ordering. |
B | Includes items 5-10. |
