1

1027095

Plug Button, Black (7/8")

1

2

$10.00

Create/add to Wishlist

2

1052997

NLA - Headrest Tube Assembly, Black - Right

1

N/A

Create/add to Wishlist

2

1052998

NLA - Headrest Tube Assembly, Black - Left

1

N/A

Create/add to Wishlist

3

See Chart

Added to Cart

Back Height	16"-17" Wide Right	16"-17" Wide Left	18"-22" Wide Right	18"-22" Wide Left
18" H	1052079	1052080	1052089	1052090
20" H	1052081	1052082	1052091	1052092
22" H	1052083	1052084	1052093	1052094
24" H	1052085	1052086	1052095	1052096
26" H	1052087	1052088	1052097	1052098

Create/add to Wishlist

#3 Back Cane with Grip

N/A

Create/add to Wishlist

4

1050216

Cable with Trigger

1

2

$68.00

B

Create/add to Wishlist

4

1050215

Cable with Trigger

1

2

$107.00

C

Create/add to Wishlist

4

1050214

Cable with Trigger

1

2

D

Create/add to Wishlist

5

1026032

Washer, Nylon (11/32 x 11/16 x 1/16")

1

4

Create/add to Wishlist

6

1050153

Screw, Shoulder Hex Socket Head (5/16 x 7/8", 1/4-20)

1

2

$9.00

Create/add to Wishlist

7

1050306

Cylinder, Lock

1

2

$165.00

Create/add to Wishlist

8

1050136

Pivot, Block

1

2

Create/add to Wishlist

9

1012371

Washer, Nylon (3/8 x 7/8 x 1/16")

1

12

$9.00

Create/add to Wishlist

10

1031665

Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)

1

4

$9.00

Create/add to Wishlist

11

1050293

Bar, Spreader, Black (14-20" W)

1

F

Create/add to Wishlist

11

1050294

Bar, Spreader, Black (21-24" W)

1

G

Create/add to Wishlist

12

1024713

Spring, Torsion w/ Button

1

2

Create/add to Wishlist

13

1091417

NLA - Screw, Phillips Pan Head (#10-24 x 1-1/4")

1

2

N/A

Create/add to Wishlist

14

1095503

NLA - Package, Tie Wrap (5-5/8" L)

10

1

N/A

Create/add to Wishlist

15

1025736

Locknut (1/4-20)

1

2

$8.00

Create/add to Wishlist

16

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$8.00

Create/add to Wishlist

17

1026158

Locknut (5/16-18)

1

4

$9.00

Create/add to Wishlist

18

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

4

$9.00

Create/add to Wishlist

19

1134498

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
22	Sensor, Actuator Switch	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1

Kit, Limit Switch Assembly

1

A

Create/add to Wishlist

24

1146573

NLA - Cable, Drive Lockout Sensor, MK6i

1

N/A

E

Note Code	Definition
A	Includes items 20-23. Cable sensor is not included, see item 24.
B	For use with 18-20" high back canes.
C	For use with 22-24" high back canes.
D	For use with 26" high back canes.
E	Drive Lockout Sensor Cable used for chairs manufactured with MK6i electronics only.
F	16-17" wide.
G	18-22" wide.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

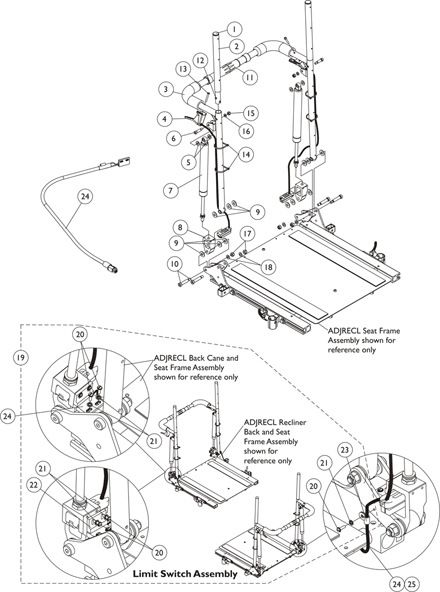

Backs - Recliner Assembly - ADJRECL Seat Frames
