Backs - Contoura without Mounting Hardware - ADJASBA Only - Before 05/15/09

Print this page

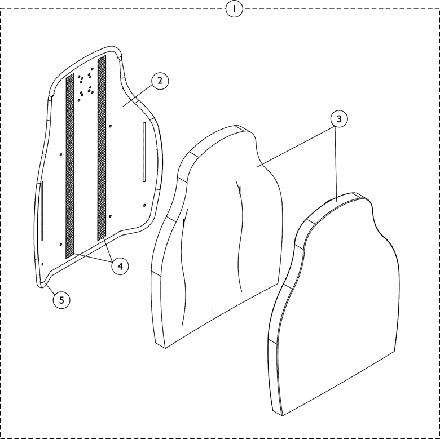

Back, Contoura without Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Overall Back Height		Material Back Height		16" Wide		18" Wide		20" Wide		22" Wide
25"		20"		1132828- NLA		1132829- NLA		1132830- NLA		1132831- NLA
29.5"		24"		1132825- NLA		1124733- NLA		1124734- NLA		1132826- NLA

Create/add to Wishlist

#1 Back Assembly without Hardware 16", 18", 20", 22" Wide

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height		Material Back Height		16" Wide		18" Wide		20" Wide		22" Wide
25"		20"		1131405- NLA		1131406- NLA		1131407- NLA		Note-A 1131408- NLA
29.5"		24"		1131410- NLA		1122454- NLA		1122453- NLA		1131411- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Item is No Longer Available. Back Assembly, part # 1132831 must be purchased for replacement.

#2 Back Pan with Vinyl Edge Trim 16", 18", 20", 22" Wide

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height		Material Back Height		16" Wide		18" Wide		20" Wide		22" Wide
25"		20"		1132820- NLA		1132821- NLA		1132822- NLA		1132823- NLA
29.5"		24"		1132817- NLA		1125641- NLA		1125642- NLA		1132818- NLA

Create/add to Wishlist

#3 Back Cushion Assembly 16", 18", 20", 22" Wide

N/A

Create/add to Wishlist

1125725

NLA - Hook Fastener w/ Adhesive Back (1" W x 48" L)

N/A

Create/add to Wishlist

1125724

NLA - Trim, Edge, Cut-To-Length, Vinyl Black (96" L)

N/A

Create/add to Wishlist
