Shrouds & Hardware

Print this page

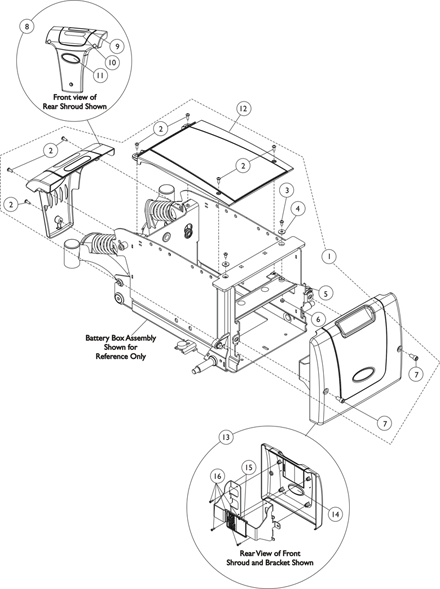

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1144651

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Phillips Pan Head (#10-32 x 1/2")	1	7
3	Screw, Phillips Pan Head (#10-32 x 3/8")	1	2
4	Washer (1/4 x 23/32 x 1/16")	1	2
5	Shroud, Isolation	1	1
6	Locknut (#10-32)	1	2
7	Screw, Socket Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Phillips Pan Head (#10-32 x 1/2")	1	7
3	Screw, Phillips Pan Head (#10-32 x 3/8")	1	2
4	Washer (1/4 x 23/32 x 1/16")	1	2
5	Shroud, Isolation	1	1
6	Locknut (#10-32)	1	2
7	Screw, Socket Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Phillips Pan Head (#10-32 x 1/2")	1	7
3	Screw, Phillips Pan Head (#10-32 x 3/8")	1	2
4	Washer (1/4 x 23/32 x 1/16")	1	2
5	Shroud, Isolation	1	1
6	Locknut (#10-32)	1	2
7	Screw, Socket Head w/ Patch (5/16-18 x 5/8")	1	2

Kit, Shroud Hardware (For 22NF Batteries)

Create/add to Wishlist

1144650

Shroud w/ Decal - Rear (TRRO/TRBKTS)

$66.00

Create/add to Wishlist

1119281

NLA - Plate, Name, Patent Numbers

N/A

Create/add to Wishlist

1035900

Decal, Transportation

Create/add to Wishlist

1144643

Shroud, Center

Create/add to Wishlist

1144644

Shroud, Center (TRRO/TRBKTS)

Create/add to Wishlist

1144642

Front Shroud and Bracket Assembly, Non-Elevate, Narrow (2-22NF Batteries)

$170.00

Create/add to Wishlist

1145069

Kit, Front Shroud Bracket w/ Decal, Black

Create/add to Wishlist

1114276

Screw, Phillips Pan Head (#8-16 x 5/8")

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Items 2-7.
B	Includes Items 9-11. The controller is also covered by the Rear Shroud. This Rear Shroud is used for "ALL" TDX SI, TDX SI-HD and TDX SI-2 models with or without TRRO/TRBKTS option. Originally used for TDX SP models w/ TRRO/TRBKTS Option only.
C	Includes Items 14-16.

Catalog Literature

Parts Books for TDX® SI, TDX® SI-2 TDX® SI-HD
