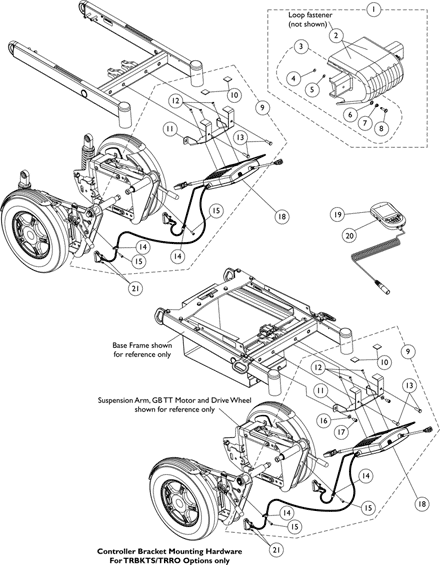

Controller - Programmer - Shroud Cover w/ Mtg. Hdwr. - 3G Storm w/ GB TT Motors
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes shroud cover and items 2-3 |
| B | Includes items 4-8 |
| C | Includes items 10-15 |
| D | Includes items 10-17 |
| E | Not Shown |
| F | Controller will include Gasket Connectors created 10/26/07 that will be attached to the motor cables. Part number on controller will reference 1140040, always order 1134213 as a service parts replacement |
| G | Kit was created 10/26/07 and attaches to the controller motor cables. Includes 2 ea. GB HD Controller Gasket Connectors, 2 ea. Silicon Lubricant Packets, 1 ea. Instruction Sheet. Individual components are non-saleable. |
| G1 | The kit can retrofit to existing GB HD controllers in the field |
| H | The MK6i Programmer Manual (1141471) is not included and is strongly recommeded the guide be ordered or downloaded from Literature Fulfillment. |
