EQUIPMENT CA Site

1

1147098

NLA - Bracket, Seat Mounting, Elevate, Black

1

N/A

Create/add to Wishlist

2

1003548

Screw, Hex Head (5/16-18 x 1")

1

4

Create/add to Wishlist

3

1026158

Locknut (5/16-18)

1

4

$9.00

Create/add to Wishlist

4

1028769

Locknut (5/16-18)

1

2

$9.00

Create/add to Wishlist

5

1018739

Washer (1/4 x 5/8 x 3/32")

1

2

$9.00

Create/add to Wishlist

6

1045267

Screw, Hex Head w/ Patch (1/4-20 x 3/4")

1

2

$9.00

Create/add to Wishlist

7

1146551

NLA - Screw, Round Head Square Neck (5/16-18 x 3/4")

1

2

N/A

Create/add to Wishlist

8

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

6

$9.00

Create/add to Wishlist

9

1025736

Locknut (1/4-20)

1

6

$8.00

Create/add to Wishlist

10

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

1

4

Create/add to Wishlist

11

1147156

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	4
13	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	4
15	Sensor, Proximity Switch (30 1/4" L)	1	1
16	NLA - Actuator Motor Assembly, Elevate	1	1
14	Sensor, Actuator Switch	1	1

NLA - Actuator Motor w/ Switch and Hardware (Elevate)

1

N/A

A

Create/add to Wishlist

12

1027704

NLA - Screw, Phillips Pan Head (#4-40 x 3/8")

1

4

N/A

Create/add to Wishlist

13

1011011

NLA - Washer, Plain (1/8 x 5/16 x 1/32")

1

4

N/A

Create/add to Wishlist

14

1024001

Sensor, Actuator Switch

1

$29.00

Create/add to Wishlist

15

1122586

Sensor, Proximity Switch (30 1/4" L)

1

$90.00

Create/add to Wishlist

16

1147503

NLA - Actuator Motor Assembly, Elevate

1

N/A

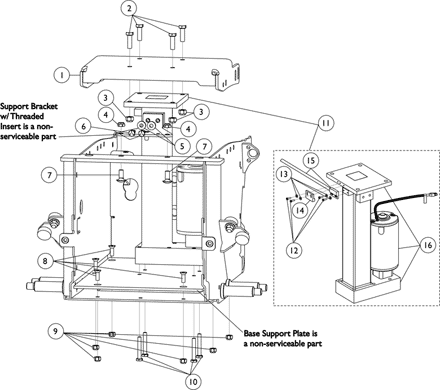

Actuator Motor - Elevate & Mounting Hardware - CGE - TDX SP (Before 1/4/08)
