Battery Box & Tray Assembly - 22NF Batteries

Print this page

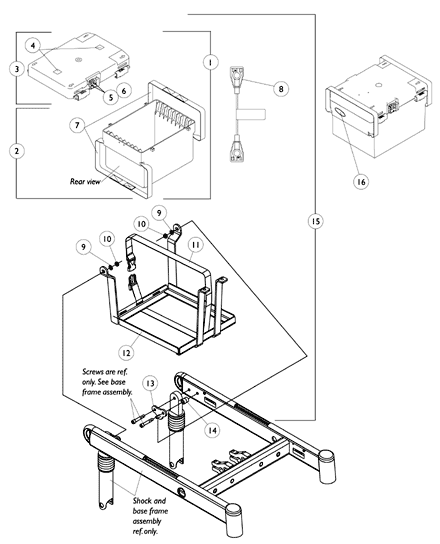

Battery Box and Tray Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1050175	Battery Box Assembly	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1049365	Battery Box Bottom with Straps	1	1	$198.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1049366	Battery Box Lid Assembly	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1070504	NLA - Fastener, Hook with Adhesive Back (1" W x 1" L)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1037901	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	P0870X050	NLA - Nut, Keps (#6-32)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	50000X121	Strap, Battery Lift	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	50000X123	Cable, Battery Jumper	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1028769	Locknut (5/16-18)	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1049846	Strap Assembly, Battery	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1092190	NLA - Battery Tray with Strap Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1049354	NLA - Bracket, Hanger, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1104881	Spacer (3/8 x 5/8 x 3/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1104837	Battery Box/ Tray Assembly	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1095489	Decal, Invacare 3-D Logo (2-1/2" L)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1089385	Fuse, MIDI (Non-G/B & G/B) (80 AMP)	1	1	$32.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2 and 3
B	Includes items 4-6
C	Includes items 1, 8-10 and 12-14
D	Not Shown

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
