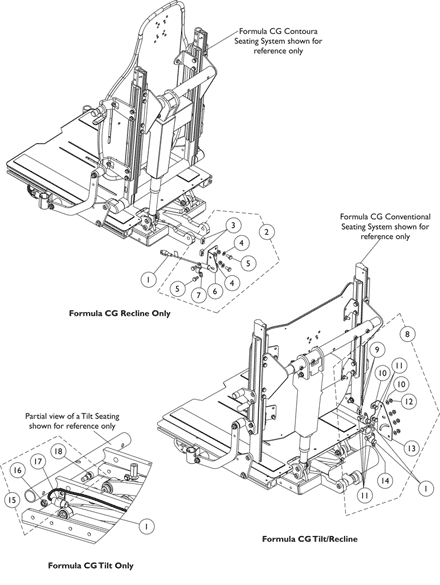

Switch - Mercury Free & Hardware - Conventional Actuator Motors only

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1140099

Switch, Drive Lockout Mercury Free Ball (MK6i) (50" L)

$139.00

Create/add to Wishlist

1146303

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	T-Nut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	4
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
6	NLA - Bracket, Drive Lockout, Black	1	1
7	NLA - Bracket, Switch Mounting, Black	1	1

NLA - Kit, Switch Mounting Hardware (Formula CG Recline Only)

N/A

Create/add to Wishlist

1146289

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	T-Nut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	6
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
6	Locknut (1/4-20)	1	4
7	Bracket, Mercury Switch Mounting, Black	1	1
8	NLA - Bracket, Switch Mounting, Black	1	2
9	T-Nut (1/4-20)	1	2
10	Washer (1/4 x 1/2 x 1/16")	1	6
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
12	Locknut (1/4-20)	1	4
13	Bracket, Mercury Switch Mounting, Black	1	1
14	NLA - Bracket, Switch Mounting, Black	1	2

Kit, Switch Mounting Hardware (Formula CG Tilt/Recline Seating System)

C ,E

Create/add to Wishlist

1121712

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Locknut (5/16-18)	1	1
4	NLA - Bracket, Cable/Wire Mounting, Black	1	1
5	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1
3	Locknut (5/16-18)	1	1
4	NLA - Bracket, Cable/Wire Mounting, Black	1	1
5	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1
13	Locknut (5/16-18)	1	1
14	NLA - Bracket, Cable/Wire Mounting, Black	1	1
15	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1
16	Locknut (5/16-18)	1	1
17	NLA - Bracket, Cable/Wire Mounting, Black	1	1
18	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1

Kit, Switch Mounting Hardware (Formula CG Tilt Only)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Tilt and Recline seating systems use a quantity of (2) mercury switches
B	Includes items 2-7. Applies to 3G Storm Series only
C	Includes items 9-14. Applies to 3G Storm Series only
D	Includes items 16-18 and applies to 3G Storm Series and TDX SP models
E	On 5/7/07 the mercury switches were positioned from the left side back cane to the right side back cane and is backward compatible. This allows easier access to service the mercury switches.

Catalog Literature

Parts Books for Formula™CG Powered Seating CGE/CGT/CGTE/CGR/CGTR/CGTRE
