Arms - Mtg. Front/Rear Arm Socket Asbly. & Hdwr. - ADJASBA Seats - TRRO Option - TDX SC (16" - 20" W)

Print this page

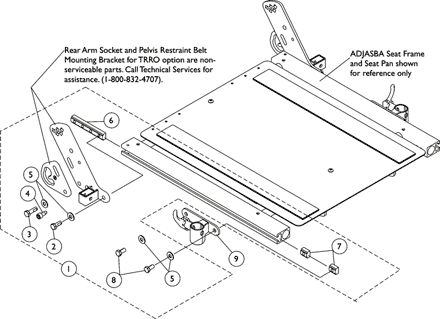

Front/Rear Arm Socket Assembly and Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1136025

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
12	Screw, Socket Head (5/16-18 x 3/4")	1	1
10	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
14	T-Nut (5/16-18)	1	1
15	T-Nut (5/16-18)	1	2
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
16	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
11	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
12	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
13	Screw, Socket Head (5/16-18 x 3/4")	1	1
14	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
15	T-Nut (5/16-18)	1	1
16	T-Nut (5/16-18)	1	2
17	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
11	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
12	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
13	Screw, Socket Head (5/16-18 x 3/4")	1	1
14	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
15	T-Nut (5/16-18)	1	1
16	T-Nut (5/16-18)	1	2
17	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
4	Screw, Socket Head (5/16-18 x 3/4")	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	T-Nut (5/16-18)	1	1
7	T-Nut (5/16-18)	1	2
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	1
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	1

NLA - Kit, Front/Rear Arm Socket Assembly Mounting Hardware For TRRO Option

N/A

Create/add to Wishlist

1122619

Socket, Arm, Front - Right

$85.00

Create/add to Wishlist

1122620

Socket, Arm, Front - Left

$85.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-8

Catalog Literature

Parts Books for TDX® SC (CGE option included) and TDX® SPREE (CGE standard)
