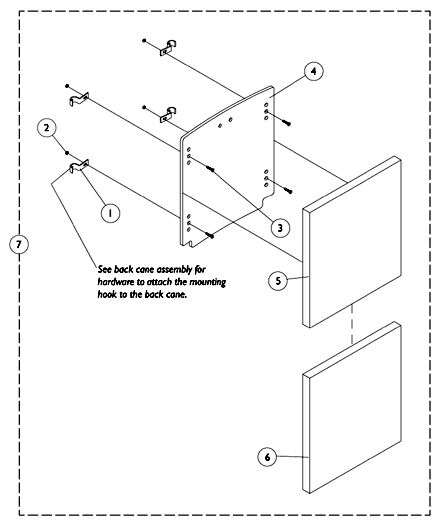

Backs - ABS Curved

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

0124202

Hook, Back Assembly Mounting

Create/add to Wishlist

7930333

Locknut (1/4-20)

$62.00

Create/add to Wishlist

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

$9.00

Create/add to Wishlist

4-7

See Chart

Added to Cart

Back Material Width x Height	Overall Back Height	4. Back Pan	5. 1" Back Foam	6. Back Cover	7. Back Assembly w/ Fixed Hardware
14" x 16"	18"-19" H	0048819- NLA	1073070	0010821- NLA	1073098- NLA
15" x 16"	18"-19" H	0048919- NLA	1073077- NLA	0011021- NLA	1073099
16" x 16"	18"-19" H	0049019- NLA	0009720	0011221- NLA	1072790- NLA
17" x 16"	18"-19" H	0049119	0009920- NLA	0011421- NLA	1072791
18" x 16"	18"-19" H	0049219- NLA	0010120- NLA	0011621- NLA	1072792- NLA
19" x 16"	18"-19" H	0049319	0010320- NLA	0011821- NLA	1072793
20" x 16"	18"-19" H	0049419- NLA	0009820- NLA	0012021- NLA	1072794- NLA
21" x 16"	18"-19" H	0049519- NLA	1073078	0304021- NLA	1073100- NLA
22" x 16"	18"-19" H	0049619	1073079	0164421- NLA	1073101
14" x 18"	20"-22" H	1073064- NLA	1073071- NLA	1073093	1073102- NLA
15" x 18"	20"-22" H	1073065- NLA	1073081- NLA	1077077	1073103- NLA
16" x 18"	20"-22" H	0118819- NLA	0010120- NLA	0124321- NLA	1072795- NLA
17" x 18"	20"-22" H	0118919- NLA	0126720- NLA	0124421- NLA	1072796- NLA
18" x 18"	20"-22" H	0119019- NLA	0126820- NLA	0124521- NLA	1072797- NLA
19" x 18"	20"-22" H	0119119- NLA	0126920	0124621- NLA	1072798- NLA
20" x 18"	20"-22" H	0119219- NLA	0010220- NLA	0124721- NLA	1072799- NLA
21" x 18"	20"-22" H	0119319- NLA	1073083- NLA	0304121- NLA	1073104- NLA
22" x 18"	20"-22" H	0119419	1073084- NLA	0304321- NLA	1073105
14" x 20"	23"-25" H	1073066- NLA	1073073	0010921- NLA	1073106- NLA
15" x 20"	23"-25" H	1073067- NLA	1073086- NLA	0011121- NLA	1073107- NLA
16" x 20"	23"-25" H	0125319- NLA	0009820- NLA	0011321- NLA	1072800- NLA
17" x 20"	23"-25" H	0125419- NLA	0010020- NLA	0011521- NLA	1072801
18" x 20"	23"-25" H	0125519- NLA	0010220- NLA	0011721- NLA	1072802- NLA
19" x 20"	23"-25" H	0125619- NLA	0010420	0011921- NLA	1072803- NLA
20" x 20"	23"-25" H	0125719	0010620- NLA	0012121- NLA	1072804- NLA
21" x 20"	23"-25" H	0125819	1073087- NLA	0304221- NLA	1073108
22" x 20"	23"-25" H	0125919- NLA	1073088- NLA	0158721- NLA	1073109- NLA

Create/add to Wishlist

Item #'s 4-7 A.B.S. Curved Back Assembly

N/A

Create/add to Wishlist

1125723

Kit, Hook Fastener w/ Adhesive Back

$24.00

A ,E

Create/add to Wishlist

0143900

NLA - Flap, Back Pan - Tarsys

N/A

A ,B

Create/add to Wishlist

0144000

NLA - Flap, Back Pan - Tarsys

N/A

A ,C

Create/add to Wishlist

0144100

NLA - Flap, Back Pan - Tarsys

N/A

A ,D

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	16-17" Wide
C	18-19" Wide
D	20-22" Wide
E	Hook Fastener Adhesive Kit is used to attach the Back Cover to the Back Pan and must be ordered when a new Back Pan or Back Assembly is requested.

Catalog Literature

Parts Books for Tarsys® Weight Shifting Basic Tilt Powered Seating
