Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1144585

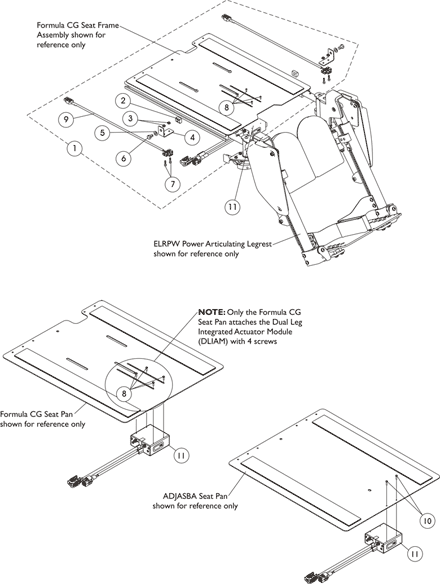

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	T-Nut (5/16-18)	1	2
3	Locknut (#8-32)	1	4
4	NLA - Bracket, Wire Harness, Black	1	2
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
7	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
8	Screw, Phillips Pan Head (#4-40 x 3/8")	1	4
9	Harness, ELRPW Power Legrest - Right	1	1
9	Harness, ELRPW Power Legrest - Left	1	1
3	T-Nut (5/16-18)	1	2
4	Locknut (#8-32)	1	4
5	NLA - Bracket, Wire Harness, Black	1	2
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
8	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
9	Screw, Phillips Pan Head (#4-40 x 3/8")	1	4
10	Harness, ELRPW Power Legrest - Right	1	1
10	Harness, ELRPW Power Legrest - Left	1	1

Kit, ELRPW Power Articulating Legrest Harnesses and Mtg. Hdwr. For Formula CG (Pair)

1052041

Screw, Phillips Pan Head (#4-40 x 3/8")

1021742

Screw, Phillips Pan Head (#4-40 x 1/2")

$9.00

1140032

Module, Dual Legs Integrated Actuator (DLIAM) - MK6i (54" L)

A ,B

Note Code	Definition
A	The Dual Legs Integrated Actuator Module is attached to a 12"-16" wide ADJASBA (NON-Formula CG Seating System) seat pan in the same way when ELRPW Front Riggings are ordered with MK6i electronics
B	On 2/28/07 the Dual Leg Actuator Module (DLIAM) harness cable lengthened from approximately 3" to 20" long to eliminate the need for the ELRPW Power Legrest Harness Assemblies that attached between the DLIAM box and the ELRPW Power Legrest actuators.
C	The ELRPW Power Articulating Legrest Harnesses and Mounting Hardware Kit is also used on Formula TRE Powered Seating when MK6i electronics were introduced 10/09/06
