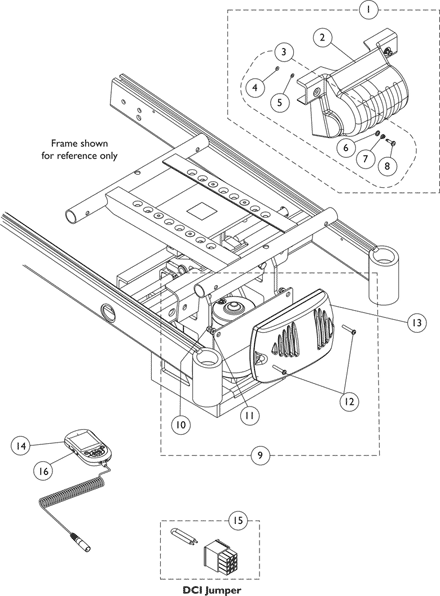

Controller - Programmer - Shroud Cover w/ Mtg. Hdwr. - 3G Storm w/ 4 Pole Motors & Formula CG Elevate
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 |
1144784
|
Kit, Controller Shroud with Hardware | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
3 | 1104706 | NLA - Kit, Controller Shroud Mounting Hardware (Pair) | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
4 | 1110509 | NLA - Retainer, Stud (1/4" Turn) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1070580 | NLA - Washer, Nylon Retainer (1/4 x 1/2 x 1/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1070581 | NLA - Washer, Nylon Cupped (9/32 x 19/32 x 3/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1093312 | NLA - Spring, Torsion Ejector | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1110508 | NLA - Stud, Phillips Recess (1/4" Dia. x 1" Long, 1/4 Turn) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 |
1145570
|
NLA - Kit, Controller Mounting Hardware | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
13 | 1136898 | Controller, MK690 w/ ACC | 1 | 1 |
$1,307.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1139985 | Programmer, MK6i Remote | 1 | 1 |
$1,011.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
14 | 1142215 | Kit, MK6i Remote Programmer w/ SD Professional Card & Card Holder (1813M6) | 1 | 1 |
$1,198.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
15 | 1140125 | NLA - Jumper, DCI | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
16 | 1139997 | Cover, SD Card Slot | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1095502 | NLA - Package, Tie Wrap (11-1/2" L) | 10 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Inculdes items 2 and 3. |
B | Includes items 4-8. |
C | Includes items 10-12. |
D | Not Shown |
E | DCI Jumper is used when an MPJ+ Joystick is used |
F | The MK6i Programmer Manual (1141471) is not included and is strongly recommeded the guide be ordered or downloaded from Literature Fulfillment. |
