Seat Assembly - Lynx SX3P/SX3/LX3/LX3 Plus & Panther LX4/MX4

Print this page

Click to Enlarge

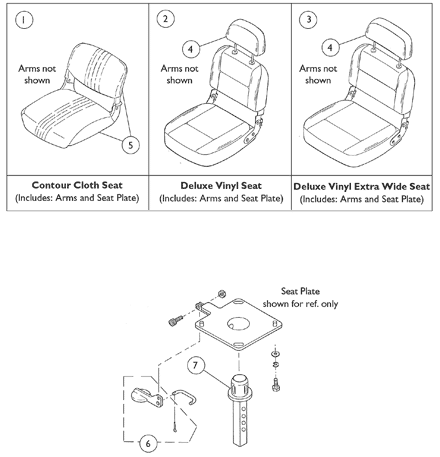

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1088753	NLA - Seat Assembly, Contour Cloth - Lynx SX3P/ SX3/ LX3	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1088754	NLA - Seat Assembly, Deluxe Vinyl - Lynx LX3/ LX3 Plus	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1091861	NLA - Seat Assembly, Deluxe Vinyl with Sliders - Panther LX4	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1088755	NLA - Seat Assembly, Deluxe Extra Wide Vinyl w/ Sliders - Panther MX4	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1088759	NLA - Headrest, Vinyl (Black and White) - Lynx LX3/ LX3 Plus and Panther LX4/ MX4	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1106211	NLA - Headrest, Vinyl (Gray) - Lynx LX3/ LX3 Plus and Panther LX4/ MX4	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1088757	NLA - Upholstery w/ Foam, Contour Seat and Back, Lynx SX3P/ SX3/ LX3 and Zoom-3 - Cloth	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1088758	NLA - Upholstery with Foam, Contour Seat, and Back	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1088756	NLA - Handle, Seat Swivel with Pin	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1102926	NLA - Post, Adjustable Height Seat	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	P715	Strap, Seat Positioning - All Models	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Seat Assembly includes Arms and Seat Plate
B	Not Shown
C	No Longer Available.

Catalog Literature

Parts Books for Panther™ / Lynx™ / Zoom-3 Scooters
