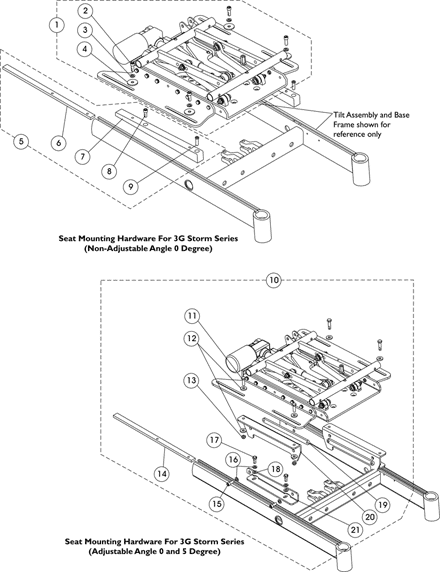

Seat Frame Mounting Hardware (Non-Adj. & Adj. Angle)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1145484

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Head w/ Patch (5/16-18 x 7/8")	1	4
3	NLA - Lockwasher, Split (5/16")	1	4
4	Washer, Steel (11/32 x 1-1/4 x 1/8")	1	4

Kit, Non-Adj. Angle Seat Frame Mounting Hardware (0 Deg.)

1

1

A

Create/add to Wishlist

Create/add to Wishlist

5

1144765

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Bar, Clamping	1	2
7	Wedge, Mounting, Black	1	2
8	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	2
9	NLA - Screw, Socket Head (5/16-18 x 1")	1	2

Kit, Wedge Mounting Assembly

1

1

B

Create/add to Wishlist

Create/add to Wishlist

10

1144768

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	4
12	Washer, Flat (21/64 x 53/64 x 7/64")	1	8
13	Locknut (5/16-18)	1	4
14	Bar, Clamping	1	2
15	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	4
16	NLA - Washer, Lock (5/16 x 9/16 x 1/16")	1	8
17	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
18	NLA - Washer, Steel (5/16 x 5/8 x 1/16")	1	4
19	Strap, Bolt	1	2
20	Bracket, Adjustable Mounting (0 - 5 Deg.)	1	2
21	Bracket, Adjustable Angle - Right	1	1
21	Bracket, Adjustable Angle - Left	1	1

Kit, Adj. Angle Bracket Assembly (0 - 5 Deg.)

1

1

C

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-4
B	Includes items 6-9
C	Includes items 11-21. The Adjustable Angle Bracket is used when the 5SA model pick is selected on-chair. The bracket is slotted to allow 0 - 5 degree adjustments.

Catalog Literature

Parts Books for Formula™CG Powered Seating CGE/CGT/CGTE/CGR/CGTR/CGTRE
