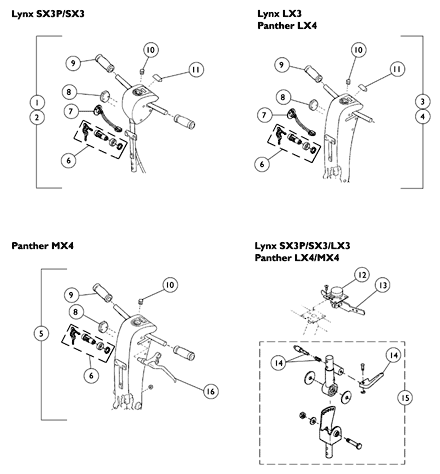

Tiller Assembly w/ Harness - Lynx LX3 (Before S/N 00F622315) - Panther LX4 (Before S/N 00F622475) - Panther MX4 (Before S/N 00F623495)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1088691 | NLA - Tiller Assembly w/ Harness, Gray | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 1088692 | NLA - Tiller Assembly w/ Harness, Candy Red | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 1088694 | NLA - Tiller Assembly w/ Harness, Deep Blue | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1088695 | NLA - Tiller Assembly w/ Harness, Candy Red | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1088696 | NLA - Tiller Assembly w/ Harness, Metallic Green | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1088697 | NLA - Tiller Assembly w/ Harness, Deep Blue | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1088698 | NLA - Tiller Assembly w/ Harness, Candy Red | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1088699 | NLA - Tiller Assembly w/ Harness, Metallic Green | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1088700 | NLA - Tiller Assembly w/ Harness, Deep Blue | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1088701 | NLA - Tiller Assembly w/ Harness, Champagne | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1102927 | NLA - Key Switch with Keys | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1088704 | NLA - Keys Only (Pair) | 2 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1091863 | NLA - Charger Port - Lynx SX3P, Panther LX4 and Zoom-3 | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1091862 | NLA - Cover, Charger Port - Lynx SX3/LX3/LX3 Plus and Panther MX4 | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1088706 | NLA - Grips, Hand (Pair) | 2 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1088705 | NLA - Knob, Tiller Speed | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 11 | 1088707 | NLA - Canopy, LED | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1101276 | NLA - Potentiometer | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 13 | 1088708 | NLA - Lever, Throttle | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1088709 | NLA - Handle, Latch with Spring and Pin | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 1099708 | NLA - Swivel Bracket Assembly | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 16 | 1088778 | NLA - Brake, Hand - Panther MX4 | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 1097017 | NLA - Kit, Decal w/ Instruction Sheet, Forward/Reverse - Left Hand | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
| 1088794 | NLA - Tiller Hardware - All Models Includes: 2 each Bolt (M6 x 1.0 x 35) 2 each Nut, Self-Lock (6 x 10 x 8) 1 each Washer (8 x 39 x 2) 1 each Washer (8 x 39 x 1.6) 1 each Bolt (M8 x 1.25 x 50) 1 each Washer (8 x 22 x 2) 1 each Nut, Self-Lock (8 x 1.25 x 13) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Not Shown |
| B | This Knob is used on all tiller models - it is not shown on some. |
| C | The Throttle Lever is included with this item. If the tiller for this part is for is not a "Delta" tiller, please contact the technical services department for instructions on replacing this item. |
