Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1125765

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	8
4	Washer (1/4 x 1/2 x 1/16")	1	8
5	T-Nut (1/4-20)	1	8
2	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	8
3	Washer (1/4 x 1/2 x 1/16")	1	8
4	T-Nut (1/4-20)	1	8
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	8
4	Washer (1/4 x 1/2 x 1/16")	1	8
5	T-Nut (1/4-20)	1	8
2	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	8
3	Washer (1/4 x 1/2 x 1/16")	1	8
4	T-Nut (1/4-20)	1	8
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	8
4	Washer (1/4 x 1/2 x 1/16")	1	8
5	T-Nut (1/4-20)	1	8
2	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	8
3	Washer (1/4 x 1/2 x 1/16")	1	8
4	T-Nut (1/4-20)	1	8

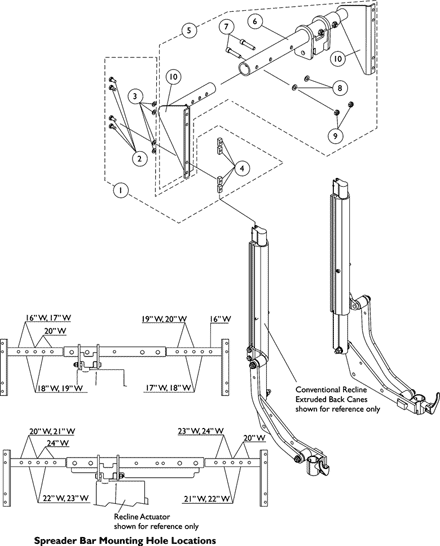

Kit, Spreader Bar Mounting Hardware For Extruded Back Canes

1144583

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Center Spreader Bar Assembly (16 - 20" W)	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4
8	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
9	Locknut (5/16-18)	1	4
10	NLA - Bracket, Straight Outer Spreader Bar - Right For 16"-20" Wide	1	1
10	NLA - Bracket, Straight Outer Spreader Bar, Black - Left (16-20" W)	1	1
6	Center Spreader Bar Assembly (16 - 20" W)	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4
8	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
9	Locknut (5/16-18)	1	4
10	NLA - Bracket, Straight Outer Spreader Bar - Right For 16"-20" Wide	1	1
10	NLA - Bracket, Straight Outer Spreader Bar, Black - Left (16-20" W)	1	1

Kit, Spreader Bar Assembly For CG Conv. Recline & T/R 16-20" Wide

1144584

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Center Spreader Bar Assembly (20 - 24" W)	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4
8	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
9	Locknut (5/16-18)	1	4
10	NLA - Bracket, Straight Outer Spreader Bar, Black - Right (20-24" W)	1	1
10	NLA - Bracket, Straight Outer Spreader Bar, Black - Left (20-24" W)	1	1
6	Center Spreader Bar Assembly (20 - 24" W)	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4
8	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
9	Locknut (5/16-18)	1	4
10	NLA - Bracket, Straight Outer Spreader Bar, Black - Right (20-24" W)	1	1
10	NLA - Bracket, Straight Outer Spreader Bar, Black - Left (20-24" W)	1	1

Kit, Spreader Bar Assembly For CG Conv. Recline & T/R 20-24" Wide

Note Code	Definition
A	Includes items 2-4
B	Includes items 6-10
