Front Riggings - Center Mount Rigging Mtg. Hdwr. (CTMT/CTMT-L/CTMTJ) (12" - 24" W) (Before 7/5/05)

Print this page

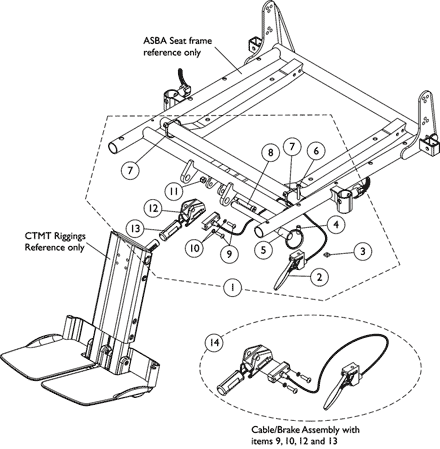

Center Mount Rigging Mounting Hardware (CTMT) and (CTMTJ)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1117264

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
13	Bearing, Glide	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
12	Housing, Ratchet	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
5	NLA - Pin, Quick Release (5" Long)	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
13	Bearing, Glide	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
3	Nut, Square (#10-32)	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
11	Locknut (1/4-20)	1	1
2	Cable/Brake Assembly	1	1
12	Housing, Ratchet	1	1
7	Tie Wrap (11-1/2" L)	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2

NLA - Kit, Center Mount Rigging Mounting Hardware

N/A

Create/add to Wishlist

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$120.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-13
B	Includes items 2, 9, 10, 12 and 13

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5 Front Riggings & MK5 Electronics
