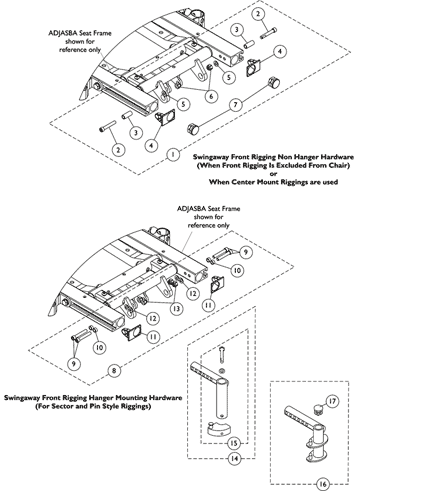

Front Riggings - Front Rigging Hanger Hdwr. - Pin & Sector Style For ADJASBA (12" - 16" W) (After 7/4/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1126150

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2
4	Spacer (1/4 x 3/8 x 29/32")	1	2
5	Cap, End, Side Rail, Black	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
8	Plug Button, Black (7/8")	1	2
2	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2
3	Spacer (1/4 x 3/8 x 29/32")	1	2
4	Cap, End, Side Rail, Black	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	Locknut (1/4-20)	1	2
7	Plug Button, Black (7/8")	1	2
2	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2
3	Spacer (1/4 x 3/8 x 29/32")	1	2
4	Cap, End, Side Rail, Black	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	Locknut (1/4-20)	1	2
7	Plug Button, Black (7/8")	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	Locknut (1/4-20)	1	2
7	Plug Button, Black (7/8")	1	2
2	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2
3	Spacer (1/4 x 3/8 x 29/32")	1	2
4	Cap, End, Side Rail, Black	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	Locknut (1/4-20)	1	2
7	Plug Button, Black (7/8")	1	2
3	Spacer (1/4 x 3/8 x 29/32")	1	2
4	Cap, End, Side Rail, Black	1	2
2	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2
2	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2
3	Spacer (1/4 x 3/8 x 29/32")	1	2
4	Cap, End, Side Rail, Black	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	Locknut (1/4-20)	1	2
7	Plug Button, Black (7/8")	1	2
2	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2
3	Spacer (1/4 x 3/8 x 29/32")	1	2
4	Cap, End, Side Rail, Black	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	Locknut (1/4-20)	1	2
7	Plug Button, Black (7/8")	1	2

Kit, Side Rail Cap Hardware

Create/add to Wishlist

1136019

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
10	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
11	Cap, End, Side Rail, Black	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	Locknut (1/4-20)	1	4
9	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
10	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
11	Cap, End, Side Rail, Black	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	Locknut (1/4-20)	1	4
9	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
10	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
9	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
10	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
11	Cap, End, Side Rail, Black	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	Locknut (1/4-20)	1	4
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	Locknut (1/4-20)	1	4
11	Cap, End, Side Rail, Black	1	2
9	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
10	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
11	Cap, End, Side Rail, Black	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	Locknut (1/4-20)	1	4
9	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
10	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
11	Cap, End, Side Rail, Black	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	4
13	Locknut (1/4-20)	1	4

Kit, Front Rigging Hanger Mounting Hardware

$72.00

Create/add to Wishlist

1122602

Front Rigging Hanger Assembly w/ Sector Block, Black - Right

$92.00

Create/add to Wishlist

1122603

Front Rigging Hanger Assembly w/ Sector Block, Black - Left

$92.00

Create/add to Wishlist

1054571

Kit, Sector Block - Right

$27.00

Create/add to Wishlist

1054572

Kit, Sector Block - Left

$27.00

Create/add to Wishlist

1124401

Front Rigging Hanger Assembly w/ Plug Button, Pin Style, Hemi, Black - Right

$93.00

Create/add to Wishlist

1124402

Front Rigging Hanger Assembly w/ Plug Button, Pin Style, Hemi, Black - Left

$90.00

Create/add to Wishlist

1134426

Package, Plug Button, Black (3/4")

$23.00

Create/add to Wishlist

1130582

Package, Plug Button, Black (7/8")

$31.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-7
B	Includes items 9-13
C	Includes item 15
D	Includes Sector Block, Screw and Washer

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5 Front Riggings & MK5 Electronics
