Interface Hardware - Attach 2GR To Battery Box

Print this page

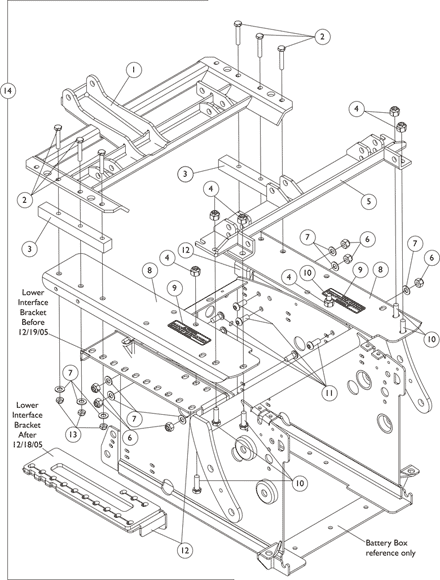

Interface Hardware For Recline Only

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1113594	NLA - Pivot Assembly, Rear	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1030949	Screw, Hex Head (1/4-20 x 1-1/2")	1	6		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1024793	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	6	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1086943	NLA - Bar, Spacer, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1064267	Locknut (5/16-18)	1	6	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1113604	NLA - Pivot Assembly, Front	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026158	Locknut (5/16-18)	1	6	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	12	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1120348	NLA - Kit, Bracket w/ Decal, Black - Right (2GTR)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1120349	NLA - Kit, Bracket w/ Decal, Black - Left (2GTR)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1118370	NLA - Decal, Warning, 2GTR Seat Repositioning	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1043629	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	6			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1071955	Screw, Socket Button Head (5/16-18 x 3/4")	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1114964	NLA - Bracket, Lower Interface, Black - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1114965	NLA - Bracket, Lower Interface, Black - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1140829	NLA - Bracket, Lower Interface, Black - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1140830	NLA - Bracket, Lower Interface, Black - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025195	Locknut (1/4-20)	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1113603	NLA - Interface Hardware - 2GR	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-13 and used to attach a 2GR to the battery box. When item 14 is ordered, item12 Lower Interface Bracket made after 12/18/05 will be shipped. The seat to floor height will be raised 1/4".
B	Before 12/19/05
C	After 12/18/05
D	Item No Longer Available. Use part # 1113603 as a replacement.

Catalog Literature

Parts Books for Tarsys® Tilt Only (2GT™) Recline Only (2GR™) Tilt and Recline (2GTR™)
