Accessories - Miscellaneous

Print this page

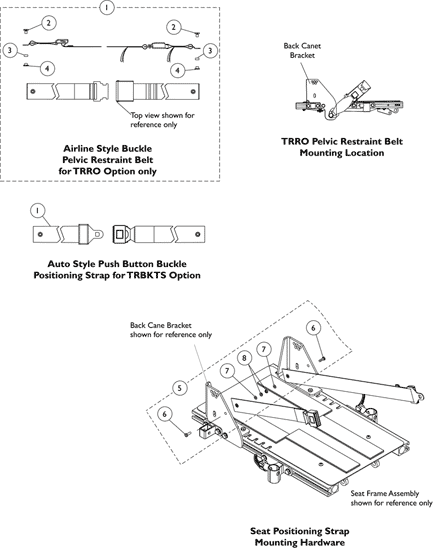

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1122818

NLA - Strap, Positioning, Seat, Airline Style Buckle w/ Hardware (37" Long Eyelet-to-Eyelet)

N/A

Create/add to Wishlist

1036527

Strap, Positioning, Seat/Chest w/ Auto Style Buckle (Eyelet to Eyelet Length 33")

Create/add to Wishlist

1118569

NLA - Pin, Threaded

N/A

Create/add to Wishlist

1118568

NLA - Bushing, Nylon (5/16 x 7/16 x 5/32")

N/A

Create/add to Wishlist

1118579

NLA - Nut, Hex Jam (3/8-16)

N/A

Create/add to Wishlist

1124385

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
7	Washer (1/4 x 23/32 x 1/16")	1	2
8	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2

Kit, Seat Positioning Strap Mounting Hardware (both LT & RT sides)

Create/add to Wishlist

40176X010

NLA - Pump, Tire

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Pelvic Restraint Belt for TRRO option. Includes items 2-4
B	Positioning Strap for TRBKTS option.
C	Hardware for auto style positioning strap. Includes items 6-8
D	Not Shown

Catalog Literature

Parts Books for Pronto® M71™ jr. with SureStep™
