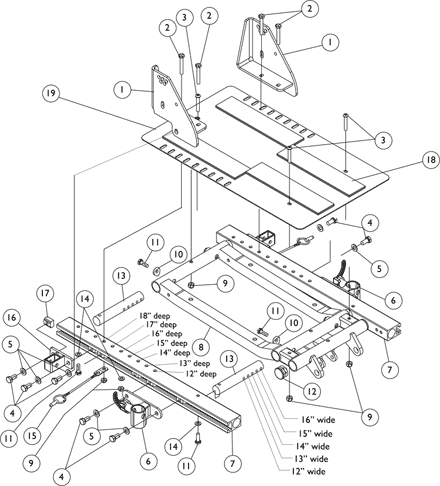

Frames - Seat - Seat Pan and Hardware - ADJASBA w/ TRBKTS - Introduced 12/19/05

ADJASBA Seat Frame, Seat Pan and Hardware

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1133597	NLA - Bracket, Back Cane Mounting, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1133598	NLA - Bracket, Back Cane Mounting, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1024793	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1008495	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	3	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1122652	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	10			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	10	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1122619	Socket, Arm, Front - Right	1	1	$85.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1122620	Socket, Arm, Front - Left	1	1	$85.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1126127	NLA - Rail, Side (12 - 18" D)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1121982	NLA - Frame, Center Seat, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1025736	Locknut (1/4-20)	1	7	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1045267	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1029501	Plug Button, Black (1")	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1126126	NLA - Crossbar, Seat Frame (12 - 16" W)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1026907	Washer (1/4 x 1/2 x 1/16")	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1068039	Pin, Pull	1	2	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1126142	Socket, Arm, Rear	1	2	$47.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1069724	T-Nut (5/16-18)	1	10			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1039949	NLA - Fastener, Hook Adhesive Back (2" W x 16" L)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1044578	NLA - Fastener, Loop Adhesive Back (2" W x 16" L)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1126144	Pan, Seat, with Hook and Loop Fasteners (12 - 16" W x 12 - 18" D)	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes item 18

Catalog Literature

Parts Books for Pronto® M71™ jr. with SureStep™
