MNS500 Low Air Loss System Service Parts

Print this page

MNS500 Low Air Loss

Click to Enlarge

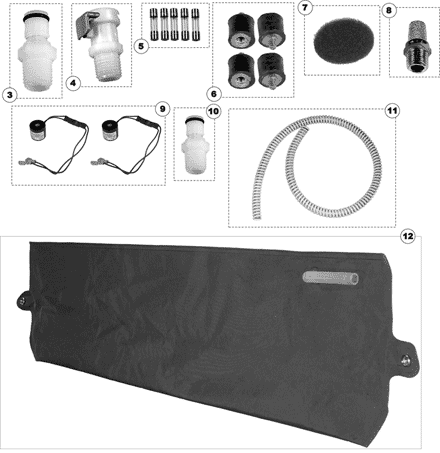

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1135278	NLA - Cover, Mattress Top MNS500 - Narrow (STZ)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1135279	NLA - Cover, Mattress Top MNS500 - Standard (STZ)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1135280	NLA - Cover, Mattress Top MNS500 - Bariatric (STZ)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1132042	NLA - Cover, Mattress Top MNS500 - Narrow (LTZ)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1132043	NLA - Cover, Mattress Top MNS500 - Standard (LTZ)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1132044	NLA - Cover, Mattress Top MNS500 - Bariatric (LTZ)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1141540	NLA - Connector, Male CPC (1/4" NPT)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1141539	NLA - Connector, Female CPC 1/4" NPT	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1141543	NLA - Fuse (750 M AMP)	5	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1141587	NLA - Package, Vibration Mount	4	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1141522	NLA - Package, Thomas Filter	10	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1141542	NLA - Muffler, Brass (1/8" NPT)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1141533	NLA - Package, Solenoid Valve	2	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1141561	NLA - Insert, Coupling (1/2" NPT)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	See Note	See Footnote	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1146109	NLA - Bladder, Air Sack, MNS5000 Narrow (32" Long)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1143681	NLA - Bladder, Air Sack, MNS5000 Standard (35" Long)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1143682	NLA - Bladder, Air Sack, MNS5000 Bariatric (42" Long)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not shown
B	Photo shows 1(one) filter, part # contains a quantity of 10 (ten) Filters.
C	No longer available as a service part in the field.

Catalog Literature

Parts Books for APM CG™ 8000 LTM MNS Series Mattress
