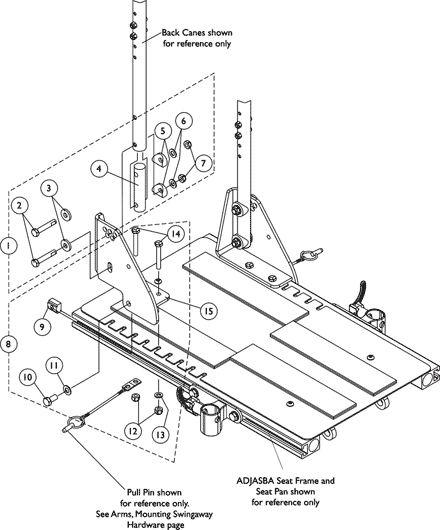

Canes - Back - Attaching Hardware For ADJASBA Seat (12"-16" Wide) (After 7/4/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1126146

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	NLA - Insert, Back Cane	1	2
5	Spacer, Coved (3/4 x 1 x 1/2")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
7	Locknut (5/16-18)	1	4
3	NLA - Insert, Back Cane	1	2
4	Spacer, Coved (3/4 x 1 x 1/2")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Locknut (5/16-18)	1	4
1	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	4
2	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
2	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	NLA - Insert, Back Cane	1	2
5	Spacer, Coved (3/4 x 1 x 1/2")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
7	Locknut (5/16-18)	1	4
2	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	NLA - Insert, Back Cane	1	2
5	Spacer, Coved (3/4 x 1 x 1/2")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
7	Locknut (5/16-18)	1	4

Kit, Back Cane Attaching Hardware

N/A

Create/add to Wishlist

1135499

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	T-Nut (5/16-18)	1	2
10	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
12	Locknut (1/4-20)	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	2
14	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4
9	T-Nut (5/16-18)	1	2
10	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
12	Locknut (1/4-20)	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	2
14	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4
9	T-Nut (5/16-18)	1	2
10	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
12	Locknut (1/4-20)	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	2
14	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4

NLA - Kit, Back Cane Bracket Mounting Hardware

N/A

Create/add to Wishlist

1133597

NLA - Bracket, Back Cane Mounting, Black - Right

N/A

Create/add to Wishlist

1133598

NLA - Bracket, Back Cane Mounting, Black - Left

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-7
B	Includes items 9-14

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
