Front Riggings - Center Mount Rigging Mtg. Hdwr. (CTMTJ & CTMT) - Before 10/27/04

Print this page

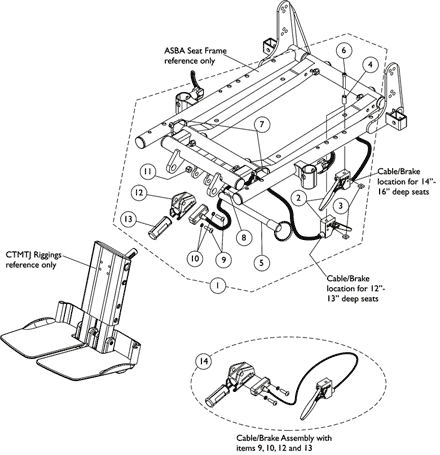

Center Mount Rigging Mounting Hardware (CTMTJ and CTMT)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1117264

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
13	Bearing, Glide	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
12	Housing, Ratchet	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
5	NLA - Pin, Quick Release (5" Long)	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
13	Bearing, Glide	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
3	Nut, Square (#10-32)	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
11	Locknut (1/4-20)	1	1
2	Cable/Brake Assembly	1	1
12	Housing, Ratchet	1	1
7	Tie Wrap (11-1/2" L)	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
2	Cable/Brake Assembly	1	1
3	Nut, Square (#10-32)	1	1
4	NLA - Spacer (3/16 x 5/16 x 3/4")	1	1
5	NLA - Pin, Quick Release (5" Long)	1	1
6	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
7	Tie Wrap (11-1/2" L)	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
9	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
10	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2
11	Locknut (1/4-20)	1	1
12	Housing, Ratchet	1	1
13	Bearing, Glide	1	2

NLA - Kit, Center Mount Rigging Mounting Hardware

N/A

A ,C

Create/add to Wishlist

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$120.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-13
B	Includes Cable Assembly and items 9,10,12, and 13
C	Ratchet Housing Material changed from aluminum to steel as of 1/8/04

Catalog Literature

Parts Books for Pronto® M71™ jr. with SureStep™
