EQUIPMENT CA Site

1-3

See Chart

Added to Cart

Item Number	Description	Ocean Blue	Emerald Green	Liquid Black	Candy Apple Red
1	Side Panel - Right	Note-A ,B ,C 1102286- NLA	Note-A ,B ,C 1102287- NLA	Note-A ,B ,C 1102285- NLA	Note-A ,B ,C 1102284- NLA
1	Side Panel - Left	Note-A ,B ,C 1102290- NLA	Note-A ,B ,C 1102291- NLA	Note-A ,B ,C 1102289- NLA	Note-A ,B ,C 1102288- NLA
2	Battery Cover	1094777- NLA	1094778- NLA	1094776- NLA	1094775- NLA
3	Trunk Lid	Note-B 1102282- NLA	Note-B 1102283- NLA	Note-B 1102281- NLA	Note-B 1102280- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Decals not included. See page titled, "Packaging, Literature and Decals."
B	Dual lock fasteners and spacers are not included with shrouds. See item 12.
C	Side Panel includes Rubber Bushing.

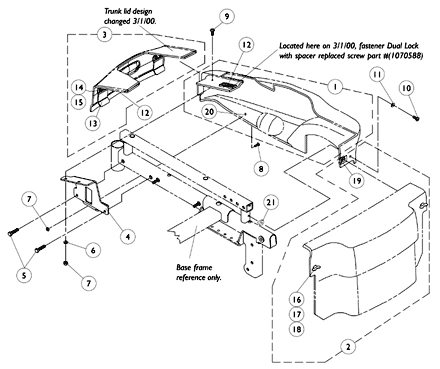

Item #'s 1-3 Shroud Covers After 2/29/00 Weight Shifting Tilt

N/A

Create/add to Wishlist

4

1079197

NLA - Bracket, Side Shroud, Black - Right

1

N/A

Create/add to Wishlist

4

1079198

NLA - Bracket, Side Shroud, Black - Left

1

N/A

Create/add to Wishlist

5

1045267

Screw, Hex Head w/ Patch (1/4-20 x 3/4")

1

4

$9.00

Create/add to Wishlist

6

1028516

Washer, Steel (3/16 x 7/16 x 1/16")

1

2

Create/add to Wishlist

7

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

8

1070575

NLA - Screw, SEMS w/ Washer (#10-32 x 7/8")

1

2

N/A

Create/add to Wishlist

9

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

2

N/A

Create/add to Wishlist

10

1028755

Screw, Phillips Pan Head (#10-32 x 5/8")

1

2

Create/add to Wishlist

11

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

2

Create/add to Wishlist

12

1097290

Kit, Dual Lock Fastener/ Spacer

1

A

Create/add to Wishlist

1079196

NLA - Hardware, Side Panel Attaching

1

N/A

B ,C

Create/add to Wishlist

13

1070577

NLA - Plate, Trunk Clip

1

2

N/A

Create/add to Wishlist

14

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

4

N/A

Create/add to Wishlist

15

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

16

1070583

NLA - Stud, Wing Head (3/4" Long)

1

2

N/A

Create/add to Wishlist

17

1070581

NLA - Washer, Nylon Cupped (9/32 x 19/32 x 3/32")

1

4

N/A

Create/add to Wishlist

18

1070580

NLA - Washer, Nylon Retainer (1/4 x 1/2 x 1/32")

1

4

N/A

Create/add to Wishlist

19

1013497

NLA - Fastener, Turn, Clip-On (1/4")

1

4

N/A

Create/add to Wishlist

20

1070594

NLA - Bushing, Rubber

1

2

N/A

Create/add to Wishlist

21

40157X019

Coved Spacer

1

2

N/A

Create/add to Wishlist

1102292

NLA - Instruction Sheet, Dual Lock Fastener/ Spacer Kit

1

N/A

B

Create/add to Wishlist

See Chart

Added to Cart

Ocean Blue		Emerald Green		Liquid Black		Candy Apple Red
Note-A ,B ,C 1096891- NLA		Note-A ,B ,C 1096892- NLA		Note-A ,B ,C 1096890- NLA		Note-A ,B ,C 1096889- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Includes items: 1, 3, 6, 7, 8, 9, 10 and 11. See category titled, "Shroud Covers After 2/29/00 Weight Shifting Tilt."
B	Decals not included. See category titled, "Packaging, Literature and Decals."
C	Not Shown.

Color Conversion Package

N/A

B

Note Code	Definition
A	Kit includes 2 each dual lock fasteners (5/8" W x 2" L) and (1" W x 2" L), 4 each dual lock spacers and instruction sheet.
B	Not Shown.
C	Includes items 4-11 and 21.
