Screw, Hex Head (1/4-28 x 1-5/8")

1

2

Create/add to Wishlist

2

1085134

NLA - Screw, Socket Flat Head (#10-32 x 1-5/8")

1

2

N/A

Create/add to Wishlist

3

1007541

Clamp, Seat

1

2

$9.00

Create/add to Wishlist

4

1036485

Socket, Arm

1

2

$9.00

Create/add to Wishlist

5

1025765

Locknut (1/4-28)

1

2

$9.00

Create/add to Wishlist

6

1106315

NLA - Brace, Arm Socket

1

2

N/A

Create/add to Wishlist

7

1119977

Screw, Socket Head (1/4-20 x 2-1/4")

1

2

Create/add to Wishlist

8

1058520

NLA - Fastener, Panel Snap-In

1

2

N/A

Create/add to Wishlist

9

1022597

Screw, Phillips Pan Head Tap (#10-32 x 3/8")

1

2

$2.60

Create/add to Wishlist

10

1025731

Locknut (#10-32)

1

2

Create/add to Wishlist

11

1071505

Screw, Socket w/ Patch (M6 x 1 x 20mm)

1

3

Create/add to Wishlist

12

1080712

NLA - Screw, Socket Head (M6 x 1 x 30mm)

1

3

N/A

Create/add to Wishlist

13

1106283

Plug, Anti-tip

1

2

Create/add to Wishlist

14

1026907

Washer (1/4 x 1/2 x 1/16")

1

4

$8.00

Create/add to Wishlist

15

1056406

Cup, Socket Pivot

1

2

$9.00

Create/add to Wishlist

1106320

NLA - Hardware, Frame, Side, 17-3/4"-19-3/4" Seat to Floor (Pair)

2

1

N/A

B ,D

Create/add to Wishlist

16

40117X006

Bearing (5/8")

1

2

$16.00

Create/add to Wishlist

17

1124839

NLA - Screw, Socket Head (M6 x 1 x 40mm)

1

6

N/A

Create/add to Wishlist

18

1124840

NLA - Screw, Socket Head (M6 x 1 x 55mm)

1

6

N/A

Create/add to Wishlist

19

1124829

NLA - Spacer, Motor, Black

1

2

N/A

Create/add to Wishlist

20

1124842

NLA - Pin, Roll (4mm x 16mm)

1

4

N/A

Create/add to Wishlist

21

1124833

NLA - Extension, Motor Lock

1

2

N/A

Create/add to Wishlist

1124828

NLA - Hardware, Frame, Side, 21" Seat to Floor (Pair)

2

1

N/A

A ,D

Create/add to Wishlist

22

1025763

Spring, Torsion with Double Button

1

2

Create/add to Wishlist

23

1106298

NLA - Anti-Tipper, Rear

1

N/A

F

Create/add to Wishlist

23

1124838

NLA - Anti-Tipper, Rear

1

N/A

G

Create/add to Wishlist

24

See Chart

Added to Cart

Frame Style	R32	R32LX	R50LX	R5I	R51LX	R51LXP
Adult - Right	Note-A ,C 8881107659- NLA	Note-A ,C 8881107659- NLA	Note-A ,C 8881107663- NLA	Note-A ,C 8881107663- NLA	Note-A ,C 8881107663- NLA	Note-A ,C 8881107663- NLA
Adult - Left Before 4/7/03	Note-A 8881107660- NLA	Note-A 8881107660- NLA	Note-A 8881107664- NLA	Note-A 8881107664- NLA	Note-A 8881107664- NLA	Note-A 8881107664- NLA
Adult - Left After 4/6/03	Note-A ,B 8881119134- NLA	Note-A ,B 8881119134- NLA	Note-A ,B 8881119136- NLA	Note-A ,B 8881119136- NLA	Note-A ,B 8881119136- NLA	Note-A ,B 8881119136- NLA
Hemi - Right	Note-A ,C 8881107657- NLA	Note-A ,C 8881107657- NLA	Note-A ,C 8881107661- NLA	Note-A ,C 8881107661- NLA	Note-A ,C 8881107661- NLA	Note-A ,C 8881107661- NLA
Hemi - Left Before 4/7/03	Note-A 8881107658- NLA	Note-A 8881107658- NLA	Note-A 8881107662- NLA	Note-A 8881107662- NLA	Note-A 8881107662- NLA	Note-A 8881107662- NLA
Hemi - Left After 4/6/03	Note-A ,B 8881119133- NLA	Note-A ,B 8881119133- NLA	Note-A ,B 8881119135- NLA	Note-A ,B 8881119135- NLA	Note-A ,B 8881119135- NLA	Note-A ,B 8881119135- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Specify frame finish when ordering, see page titled "Frame Finishes".
B	Threaded inserts removed from left side frame that mounted the MKIV controller. MK5 controller mounts differently and the threaded inserts are no longer used
C	Right Side Frames were Not affected by the MK5 change. Right Frame part nos. shown are applicable regardless of when chair was built.

#24 Side Frames

N/A

Create/add to Wishlist

1025736

Locknut (1/4-20)

1

$8.00

E

Create/add to Wishlist

1018739

Washer (1/4 x 5/8 x 3/32")

1

$9.00

E

Create/add to Wishlist

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

1

E

Note Code	Definition
A	Includes items 1-10, 13-15, & 17-21
B	Includes items 1-11, 13-15
C	Includes items 18-20
D	Not Shown.
E	Wheel Lock hardware for replacement side frame built before 2/15/03.
F	17-3/4"-19-3/4" Seat to Floor configuration
G	21" Seat to Floor configuration

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

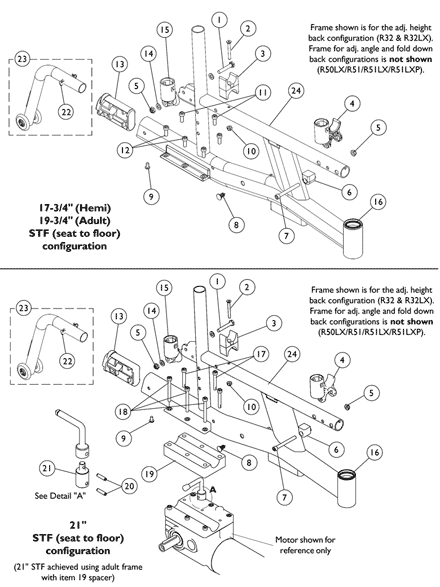

Frames - Frame Hardware & Anti-Tippers
