1

See Chart

Added to Cart

Rigging Type	Side	12-13" Wide 4-1/4" Medium Footplate	14-15" Wide 5-1/4" Large Footplate	16" Wide 6-1/4" X- Large Footplate
PHW93	Right	1060442 MSRP: $142.00	1060444 MSRP: $142.00	1062756 MSRP: $142.00
	Left	1060443 MSRP: $142.00	1060445 MSRP: $142.00	1062757 MSRP: $142.00
PH93M2	Right	1060430	1060432 MSRP: $142.00	1062572 MSRP: $142.00
	Left	1060431	1060433 MSRP: $142.00	1062573 MSRP: $142.00
PHAL4A	Right	N/A	1091775- NLA	1091777- NLA
	Left	N/A	1091776- NLA	1091778- NLA

Create/add to Wishlist

Pivot/ Slide Tube with Adjustable Angle Footplate Assemblies

N/A

Create/add to Wishlist

2

1113572

Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

$114.00

D

Create/add to Wishlist

2

1113573

Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

$114.00

D

Create/add to Wishlist

2

1113574

Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)

1

$85.00

D

Create/add to Wishlist

3

1058517

Clamp, Footplate

1

$16.00

Create/add to Wishlist

4

1057855

Tube, Pivot and Slide, Straight, Steel, Black (9-7/8" L)

1

$34.00

A

Create/add to Wishlist

4

1120384

NLA - Tube, Pivot/Slide, Straight - Alum. (9-7/8" L)

1

N/A

B

Create/add to Wishlist

4

1091745

NLA - Tube, Pivot/Slide, Straight, Steel, Chrome (13-7/8" L)

1

N/A

C

Create/add to Wishlist

5

1048816

Screw, Nylon Adjustment (1/2-13 x 7/8")

1

$12.00

Create/add to Wishlist

6

1052102

Hinge, Footplate - Right

1

$133.00

Create/add to Wishlist

6

1052103

Hinge, Footplate - Left

1

$77.00

Create/add to Wishlist

7

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

2

$9.00

Create/add to Wishlist

8

7930321

NLA Package, Screw, Socket Button Head (1/4-20 x 1-7/8")

25

1

N/A

Create/add to Wishlist

9

1026900

Washer (1/4 x 23/32 x 1/16")

1

$9.00

Create/add to Wishlist

10

7930313

Package, Washer, Nylon (5/16 x 7/8 x 1/8")

25

1

$62.00

Create/add to Wishlist

11

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

$9.00

Create/add to Wishlist

12

1026907

Washer (1/4 x 1/2 x 1/16")

1

$8.00

Create/add to Wishlist

13

1082686

Nut, Barrel, Hex Head (1/4-20 x 11/16")

1

2

$11.00

Create/add to Wishlist

14

7930333

Locknut (1/4-20)

25

1

$62.00

Note Code	Definition
A	For PHW93 footrest
B	For PH93M2 footrest
C	For PHAL4A legrest
D	This footplate was revised 9/2/2008 with rounder corners and accessory holes changed from 8 to 4. Recommended to replace footplate in pairs to match sides.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

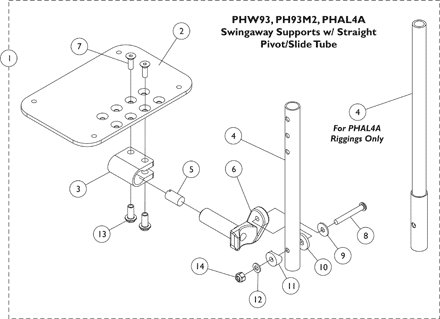

Front Riggings - Pivot/Slide Tube and Adjustable Angle Footplates - AT5543
