Front Riggings - Footrest - 90 Degree Fixed Supports w/ Footplates - AT5043 (Before 2/92)

Print this page

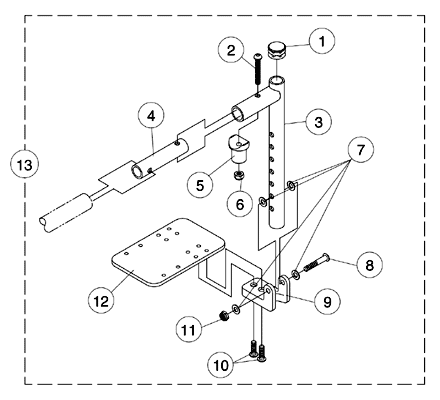

AT5043 Front Riggings

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027097	Plug Button, Black (3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1001762	Screw, Socket Button Head (1/4-20 x 1-3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1018168	NLA - Tube, Support	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1018166	NLA - Tube, Insert	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1017148	Pivot, Footrest	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1025736	Locknut (1/4-20)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026152	NLA - Washer (1/4 x 5/8 x 1/32")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1023968	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1022817	NLA - Block, Hinge	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1025195	Locknut (1/4-20)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1044078	NLA - Footplate, Black (3-1/4" W x 5-1/4" L) (10" W)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1044082	NLA - Footplate, Black (4-1/4" W x 5-1/4" L) (12" W)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	8881026652	NLA - Footrest Assembly, 90 Degree Fixed Support w/ Flip-Up Footplate, Color - Right (10" W)	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	8881026653	NLA - Footrest Assembly, 90 Degree Fixed Support w/ Flip-Up Footplate, Color - Left (10" W)	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	8881026654	NLA - Footrest Assembly, 90 Degree Fixed Support w/ Flip-Up Footplate, Color - Right (12" W)	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	8881026655	NLA - Footrest Assembly, 90 Degree Fixed Support w/ Flip-Up Footplate, Color - Left (12" W)	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify frame finish when ordering.
B	10" Wide Chairs
C	12" Wide Chairs

Catalog Literature

Parts Books for MVP® (Before 10/16/01) Xtra™ (Before 9/1/04) Jr Style Wheelchairs
