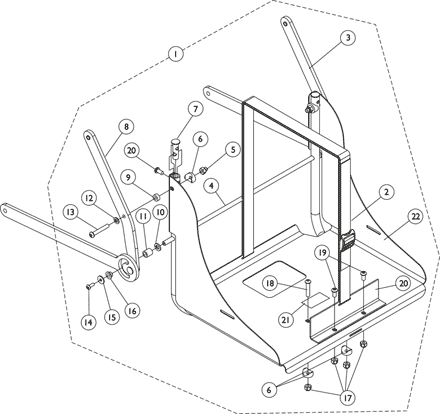

Accessories - Vent Tray Assembly without Mounting Hardware
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1113258 | NLA - Strap and Buckle Assembly | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1113256 | NLA - Vent Tray Linkage Assembly - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1113636 | NLA - Tube, Vent Tray Support, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1044214 | Nut, Hex with Nylon Cap (1/4-20) | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1025457 | Spacer, Coved (1/4 x 3/4 x 11/32") | 1 | 4 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1115813 | NLA - Plug, Slide Tube | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1113257 | NLA - Vent Tray Linkage Assembly - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1026104 | NLA - Spacer | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1072692 | NLA - Lockwasher, Split (5/16") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1115822 | NLA - Spacer, Vent | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1007453 | Lockwasher, Split (1/4") | 1 | 2 |
$13.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1019590 | Screw, Socket Button Head (1/4-20 x 1-5/8") | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1072319 | NLA - Screw, Socket Button Head (#10-32 x 1/2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1070587 | Washer, Flat (3/16 x 5/8 x 1/16") | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
16 | 1079635 | Bushing, Flange | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
17 | 1025736 | Locknut (1/4-20) | 1 | 4 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1008432 | Screw, Socket Button Head (1/4-20 x 1-1/4") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1006773 | NLA - Screw, Socket Button Head (1/4-20 x 1/2") | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1115820 | NLA - Bracket, Vent Tray, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1118361 | NLA - Decal, Warning, Approved Charger and Harness | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 1114968 | NLA - Tray, Vent | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
1125645 | NLA - Spring, Dark Yellow, EXTRA Heavy Duty | 1 | 2 | N/A | C ,D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 2-22 and used for 2GT, 2GR and 2GTR systems. When adding a vent tray assembly to extruded back canes for the first time, see page titled "Vent Tray Kit For Extruded Back Canes" and order item number 1 |
B | When Center Mount Riggings are present and a customer is adding a Vent Tray for the first time in the field, additional Invacare Technical Assistance may be required. Call 1-800-832-4707 for instructions. |
C | Not Shown. EXTRA Heavy Duty Springs must be ordered as well when a vent tray assembly is requested for the first time. |
D | Spring color changed from Sunny Yellow to Dark Yellow 3/22/10. It is recommended to order springs in pairs to match color and maintain equal spring tension on both sides of the wheelchair |
