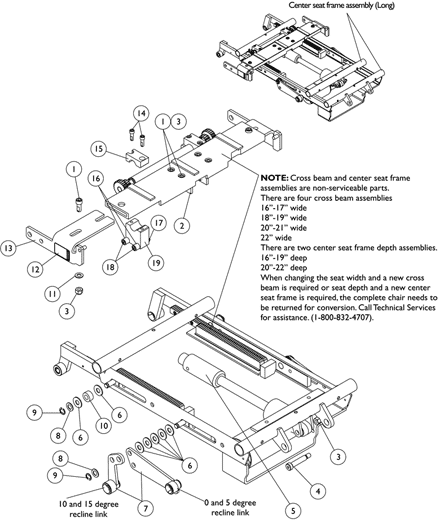

Frames - Center Seat Assembly - 2GR (Recline Actuator Included)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1086944	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1082878	NLA - Bracket, Acutator Support, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1082879	NLA - Bracket, Actuator Support, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1026158	Locknut (5/16-18)	1	7	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1031665	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1082750	Actuator Motor Assembly, Recline	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1012371	Washer, Nylon (3/8 x 7/8 x 1/16")	1	14	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1110497	NLA - Link, Recline 0 and 5 Degree Seat Tilt, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1110498	NLA - Link, Recline 0 and 5 Degree Seat Tilt, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1110499	NLA - Link, Recline 10 and 15 Degree Seat Tilt, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1110500	NLA - Link, Recline 10 and 15 Degree Seat Tilt, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1065214	Washer, Flat (3/8 x 11/16 x 1/16")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1086930	NLA - Ring, Retaining (3/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1082876	NLA - Spacer (3/8 x 3/4 x 3/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1079203	Decal, Warning Pinch Point	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1091500	NLA - Kit, Connecting Slide Bracket w/ Decal, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1091501	NLA - Kit, Connecting Slide Bracket w/ Decal, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1098944	NLA - Screw, Socket Head w/ Patch (1/4-20 x 3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1095352	NLA - Block, Gear Hold Down Upper	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1091503	NLA - Bushing (1/4 x 1/2 x 7/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1026035	NLA - Locknut (#10-24)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1000212	Screw, Shoulder Hex Socket (1/4 x 1-1/4", #10-24)	1	4	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1095476	NLA - Dual Roller Assembly - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1095477	NLA - Dual Roller Assembly - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes 2 each of items 16-18

Catalog Literature

Parts Books for Tarsys® Tilt Only (2GT™) Recline Only (2GR™) Tilt and Recline (2GTR™)
