EQUIPMENT CA Site

1

See Chart

Added to Cart

16" Wide		17" Wide		18" Wide		19" Wide		20" Wide		21" Wide		22" Wide
1086101- NLA		Note-A See Note		1086103- NLA		Note-A See Note		Note-A See Note		1086106- NLA		Note-A See Note

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	No longer available as a service part.

#1 Spreader Bar

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Side		20-21" High		22-23" High		24-25" High
Right		1086948- NLA		1086950- NLA		1086952- NLA
Left		1086949- NLA		1086951- NLA		1086953- NLA

Create/add to Wishlist

#2 Back Canes

N/A

Create/add to Wishlist

3

1078214

Screw, Hex Head w/ Patch (1/4-20 x 1/2")

1

4

Create/add to Wishlist

4

1026907

Washer (1/4 x 1/2 x 1/16")

1

4

$8.00

Create/add to Wishlist

5

1082699

T-Nut (1/4-20)

1

4

$14.00

Create/add to Wishlist

6

1099540

NLA - Link, Curved, Tilt, Black - Right

1

N/A

Create/add to Wishlist

6

1099541

NLA - Link, Curved, Tilt, Black - Left

1

N/A

Create/add to Wishlist

7

1031673

NLA - Washer, Nylon (35/64 x 1 x 1/16")

1

2

N/A

Create/add to Wishlist

8

1099527

NLA - Screw, Socket Head (3/8-16 x 3/4")

1

2

N/A

Create/add to Wishlist

9

1021851

NLA - Bolt, Socket Head Shoulder (1/2 x 1-1/2")

1

2

N/A

Create/add to Wishlist

10

1062604

Screw, Shoulder Hex Socket (3/8 x 1-1/4", 5/16-18)

1

2

$9.00

Create/add to Wishlist

11

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

6

$9.00

Create/add to Wishlist

12

1070398

NLA - Screw, Hex Head (5/16-18 x 1-1/2")

1

2

N/A

Create/add to Wishlist

13

1082725

NLA - Block, Slide

1

2

N/A

Create/add to Wishlist

14

1082724

NLA - Rod, Slide

1

2

N/A

Create/add to Wishlist

15

1039860

Screw, Hex Head w/ Patch (5/16-18 x 3/4")

1

2

Create/add to Wishlist

16

1087014

NLA - Bracket, Connecting, Black - Right

1

N/A

Create/add to Wishlist

16

1087015

NLA - Bracket, Connecting, Black - Left

1

N/A

Create/add to Wishlist

17

1026158

Locknut (5/16-18)

1

4

$9.00

Create/add to Wishlist

18

40363X000

Hex Nut (3/8"-16)

1

4

Create/add to Wishlist

19

1082829

NLA - Plug Button, Back Cane, Black

1

2

N/A

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

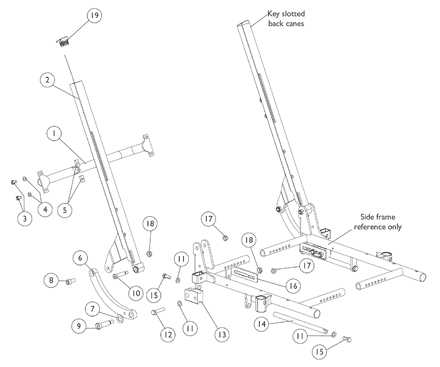

Canes - Back - Spreader Bar Assembly - 2GT
