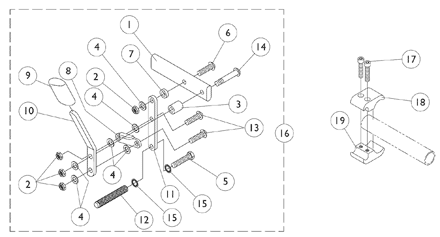

Wheel Lock - Push to Lock (MVP/Xtra/Jr./Style)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1028399	NLA - Strap, Wheel Lock	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025765	Locknut (1/4-28)	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1020363	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026103	Washer, Nylon (1/4 x 1/2 x 1/32")	1	6	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1055346	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1055306	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028411	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1018733	NLA - Link, Stop, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1006490	Tip, Plastic, Black	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1038344	NLA - Handle, Wheel Lock, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1038345	NLA - Handle, Wheel Lock, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1028416	NLA - Link, Wheel Lock, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1029420	NLA - Shoe, Wheel Lock	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1055304	Screw, Socket Button Head (1/4-28 x 5/8")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1059284	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1026108	Lockwasher (1/4 x 15/32 x 1/64")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1029423	Wheel Lock, High Mount, Push to Lock - Right	1	1	$85.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1029424	Wheel Lock, High Mount, Push to Lock - Left	1	1	$85.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1027268	Screw, Allen Head (1/4-20 x 1")	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1026097	NLA - Clamp, Wheel Lock, Non-Threaded (1")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1026096	NLA - Clamp, Wheel Lock, Threaded (1")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Order part number 1063507 (Wheel Lock Shoe Kit) for all Chairs Made Before 10/25/96.

Catalog Literature

Parts Books for MVP® (Before 10/16/01) Xtra™ (Before 9/1/04) Jr Style Wheelchairs
