EQUIPMENT CA Site

1

56000M020

Trim, Decorative

1

D

Create/add to Wishlist

1

56000M021

NLA - Trim, Decorative

1

N/A

E

Create/add to Wishlist

2

51000M908

NLA - Screw (#6 x 5/16")

1

14

N/A

Create/add to Wishlist

3

5300M022

NLA - Inner Leg with Cable Assembly

1

2

N/A

A ,C

Create/add to Wishlist

3

1105548

Inner Leg with Cable

1

2

N/A

A ,B

Create/add to Wishlist

4

51000M064

Spring, Leg Retaining

1

2

$9.00

Create/add to Wishlist

5

51000M083

Socket, Caster

1

2

$9.00

Create/add to Wishlist

6

56000M008

NLA - Pulley, Cable

1

4

N/A

Create/add to Wishlist

7

5600M015

NLA - Gearbox

1

N/A

D ,J

Create/add to Wishlist

7

5600M016

NLA - Gearbox

1

N/A

E ,J

Create/add to Wishlist

7

1134790

Part/Kit Description	Qty/Pkg	Qty/Asbly
Drive Shaft Assembly (80")	1	1
Drive Shaft Assembly (80")	1	1
NLA - Gearbox Assembly (Zinc)	1	1
NLA - Gearbox Assembly (Zinc)	1	1

NLA - Kit, Gearbox Housing (Zinc) with 80" Drive Shaft

1

N/A

H ,L

Create/add to Wishlist

8

54000M497

Screw, Hex Head (1/4-20 x 3/4")

1

2

$9.00

Create/add to Wishlist

9

53000M989

NLA - Rivet, Square Head

1

4

N/A

Create/add to Wishlist

10

54000M780

Plug, Push In

1

2

Create/add to Wishlist

11

5300M051

NLA - Kit, Screw and Slip Nut Includes: 2 ea. Roll Pin (1/8 x 7/8"), 1 ea. Nut Housing, 2 ea. Pressure Plate, 1 ea. Screw (#6 x 3/4"), 1 ea. Thrust Bearing, 1 ea. Slip Nut, 2 ea. "C"-Clip, 2 ea. Push-Plug.

1

N/A

D

Create/add to Wishlist

11

5300M050

Kit, Screw and Slip Nut Includes: 2 ea. Roll Pin (1/8 x 7/8"), 1 ea. Nut Housing, 2 ea. Pressure Plate, 1 ea. Screw (#6 x 3/4"), 1 ea. Thrust Bearing, 1 ea. Slip Nut, 2 ea. Clip "C".

1

E

Create/add to Wishlist

12

51000M088

NLA - Rod, Guide - Long

1

2

N/A

D

Create/add to Wishlist

12

51000M075

Rod, Guide, Foot End, Short

1

2

E

Create/add to Wishlist

13

51000M589

Bearing, Sleeve

1

Create/add to Wishlist

14

56000M010

Panel, Decorative

1

2

D

Create/add to Wishlist

14

56000M011

Panel, Decorative

1

2

E

Create/add to Wishlist

15

51000M581

Guide, Leg

1

4

Create/add to Wishlist

16

5600M011

Head End Assembly, Bariatric without Casters

1

N/A

D

Create/add to Wishlist

16

5600M012

Foot End Assembly - Heavy Duty without Casters

1

N/A

E

Create/add to Wishlist

17

56000M026

Caster Assembly, Swivel (5")

1

2

F

Create/add to Wishlist

17

1123543

Caster Assembly, Swivel (5")

1

2

G

Create/add to Wishlist

17

1110430

Caster Assembly, Swivel (5") (Pair)

2

1

G

Create/add to Wishlist

18

56000M027

NLA - Caster Assembly, Swivel w/ Brake (5")

1

2

N/A

F ,K

Create/add to Wishlist

18

1123544

Caster Assembly, Swivel w/ Brake (5")

1

2

G

Create/add to Wishlist

18

1110431

Caster Assembly, Swivel w/ Brake (5") (Pair)

2

1

G ,K

Note Code	Definition
A	Includes Leg, Cable, Cable Anchor, and Pin.
B	After 3/5/01
C	Before 3/6/01
D	Used on Head End only.
E	Used on Foot End only.
F	Before 2/2/04
G	After 2/1/04
H	Includes: Gear Box and 80" Drive Shaft
J	When replacing Non-IVC Gear Box, a new Drive Shaft will also need to be replaced - see Kit part # 1134790.
K	When replacing item 18, Part Number 56000M027 on beds manufactured before 2/2/04, use Part Number 1110431 as the replacement item.
L	Used with Head and Foot Bed Ends.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

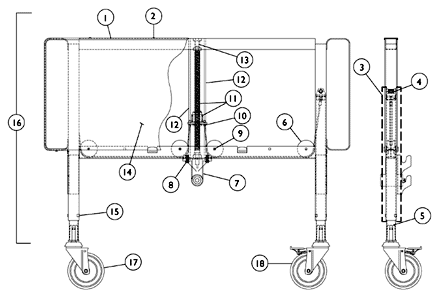

22. Bed Ends - Full Electric (BAR5401)
