Item Number	Description	Right	Left
1.	Motor / Gearbox Before 10/29/01	Note-D 1085949- NLA	Note-D 1085950- NLA
1.	WARR RPLMT - Motor / Gearbox Before 10/29/01	Note-G 1085949E- NLA	Note-H 1085950E- NLA
1.	Motor / Gearbox After 10/28/01	1109167- NLA	1109168- NLA
2.	Gearbox	Note-C 1086221 MSRP: $1,211.00	Note-C 1086222- NLA
3.	Motor Assembly Before 10/29/01	1087218- NLA	1086788- NLA
3.	Motor Assembly After 10/28/01	1109228- NLA	1109229- NLA
4.	Brake Repair Kit	Note-F 1070294- NLA	Note-F 1070295- NLA
5.	Brake Cover with Screws Before 10/29/01	1070297- NLA	1070297- NLA
5.	Brake Cover (Black) with Screws After 10/28/01	1104402- NLA	1104402- NLA
6.	Brushes with Caps	Note-E 1070296- NLA	Note-E 1070296- NLA
7.	Screw, Socket Pan Head (#8-32 x 1/4")	SEE ITEM 5	SEE ITEM 5
8.		Note-A 5165204- NLA	Note-A 5165204- NLA
8.		Note-B 50000X007- NLA	Note-B 50000X007- NLA
9.	Screw, SHC (1/4-20 x 1-1/8")	Note-C 1043594 MSRP: $9.00	Note-C 1043594 MSRP: $9.00
9.	Screw, SHC (M6 x 1 x 20MM)	Note-C 1108978 MSRP: $9.00	Note-C 1108978 MSRP: $9.00
10.	Plastic Tip Before 10/29/01	1082984- NLA	1082984- NLA
10.	Plastic Tip After 10/28/01	1101725 MSRP: $9.00	1101725 MSRP: $9.00
11.	Slotted Plate	1082985- NLA	1082985- NLA
12.	Screw, Socket Head (M6 x 30MM)	1057823- NLA	1057823- NLA
13.	Screw, Socket Head (M6 x 16MM)	1057824- NLA	1057824- NLA

See chart-note

Chart Code	Definition
A	Coupling with Cup for chairs manufactured before 11/12/01 - Use part # 50000X007 as a direct replacement part.
B	After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct replacement for part number 5165204
C	When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered. Invacare Corp. utilizes alternate suppliers for this part number.
D	As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect form, fit, function or aesthetics.
E	Kit includes (4) Brushes, (4) Brush Caps and Instruction Sheet.
F	Use existing screws when installing the Brake Repair Kit. The Motor Brake Mounting Screws are not saleable.
G	Part is no longer available as a service part. See part number 1085949 as a replacement.
H	Part is no longer available as a service part. See part number 1085950 as a replacement.

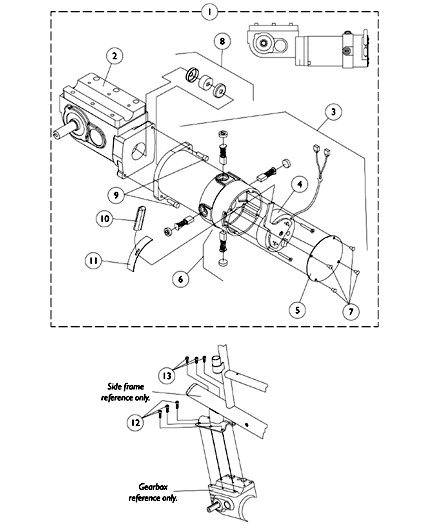

4 - Pole Motor and Gear Box
