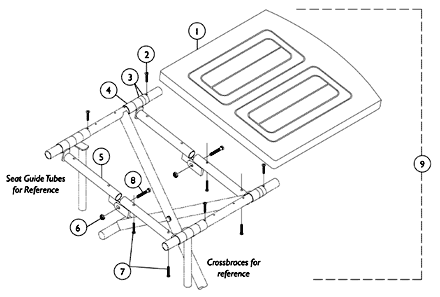

Solid Folding Seat Permanent & Removable Arm

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	8881105955	Upholstery, Seat, Solid, Vinyl (18" Wide Chair)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	8881105954	Upholstery, Seat, Solid, Vinyl (16-1/2" Wide Chairs)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	20228X013	NLA - Screw, Phillips Oval Head (#10 x 7/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	47397X024	Spacer (7/8 x 1 x 7/16")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	47397X019	Spacer (7/8 x 1 x 1")	1	3			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1012979	NLA - Crossbrace, Chrome (18" W)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1012976	NLA - Crossbrace, Chrome (16-1/2" W)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	60290X002	Locknut (5/16-18)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	11008X011	Screw, Phillips Round Head (#10-32 x 1-3/8")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	12144X000	Screw, Hex Head (5/16-18 x 1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105959	NLA - Seat, Solid Folding (18" W)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105958	NLA - Seat, Solid Folding (16-1/2" W)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105957	NLA - Seat, Solid Folding (18" W)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881105956	NLA - Seat, Solid Folding (16-1/2" W)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1036813	NLA - Instruction Sheet	1	1	N/A	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Used on Chairs with Removable Arms.
B	Used on Chairs with Permanent Arms.
C	Not Shown.
D	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
